1. Platform & Performance

• Rockchip RK3588 octa-core SoC (4×Cortex-A76 + 4×Cortex-A55), 6TOPS NPU, Mali-G610 MP4 GPU.
• Supports Android/Linux embedded systems; 4-pin CPU fan header for thermal control.

2. Memory

• Onboard LPDDR4/LPDDR4X-4266/LPDDR5-4800, max 32GB.

3. Display & Multimedia

• HDMI OUT: 8K@60fps decode (H.265/VP9/AV1), 8K@30fps encode (H.264/H.265).
• HDMI IN: 1080P@60Hz capture.
• 80-pin OPS port reserves HDMI signal with same 8K capability.

4. Storage & Expansion

• Onboard eMMC/UFS/FSPI sockets; external TF/SD card slot.
• 1×Mini PCIe slot for 4G module; SIM card slot for cellular access.

5. Networking

• Dual Realtek RTL8211F Gigabit Ethernet; one LAN port supports PoE.

6. I/O Interfaces

• Rear: 1×USB3.0, 2×USB2.0, Type-C OTG (USB2.0), IR port, 3.5mm audio jack.
• 80-pin OPS: 1×USB3.0 + 2×USB2.0 signals.
• Internal: 2×RS232 headers, debug UART, MIC pin header, antenna sockets, RTC battery holder.

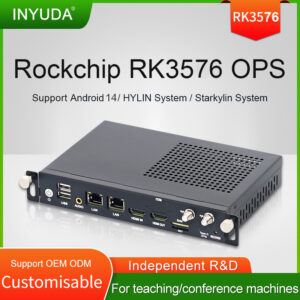

1. Core Hardware

   Powered by RK3576 processor, paired with ARM Mali-G52 MC3 GPU and RGA v2.5. Supports LPDDR4/LPDDR4X-4266 and LPDDR5-4800 memory.

2. Display

   OPS HDMI: 4K@60Hz; External HDMI IN/OUT: 1080P@60Hz.

3. Storage & Expansion

   Equipped with eMMC, UFS, SD/MMC and FSPI interfaces. Features Mini PCIe and TF card slots. Reserved ports for 4G, Wi-Fi and Bluetooth modules.

4. Network

   Dual Realtek RTL8211F gigabit Ethernet ports. One port supports PoE.

5. I/O Interfaces

   1×USB3.0, 2×USB2.0, 3.5mm combo audio jack, IR port, Type-C OTG and SIM slot. Multiple RS232 and UART ports are reserved.

6. Function Buttons & OPS Port

   Comes with power, reset and one-key update buttons. Standard 80-pin OPS interface for plug-and-play use.

Features

1. Compact X86 Form factor: Standard Mini-ITX (170×170 mm), compact for small devices.

7. Reliability: Supports 7×24 continuous operation and remote management functions.

Features

1. Ultra-Compact Form Factor

6. User-Friendly System & Design
