Key Features
CPU
Support Intel® N100/ N95/ N150 N Series
Memory
2*DDR3 1333/ 1600MHz
Storage
1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*MSATA Interfaces
Operating Temp
-20 to 60 ℃

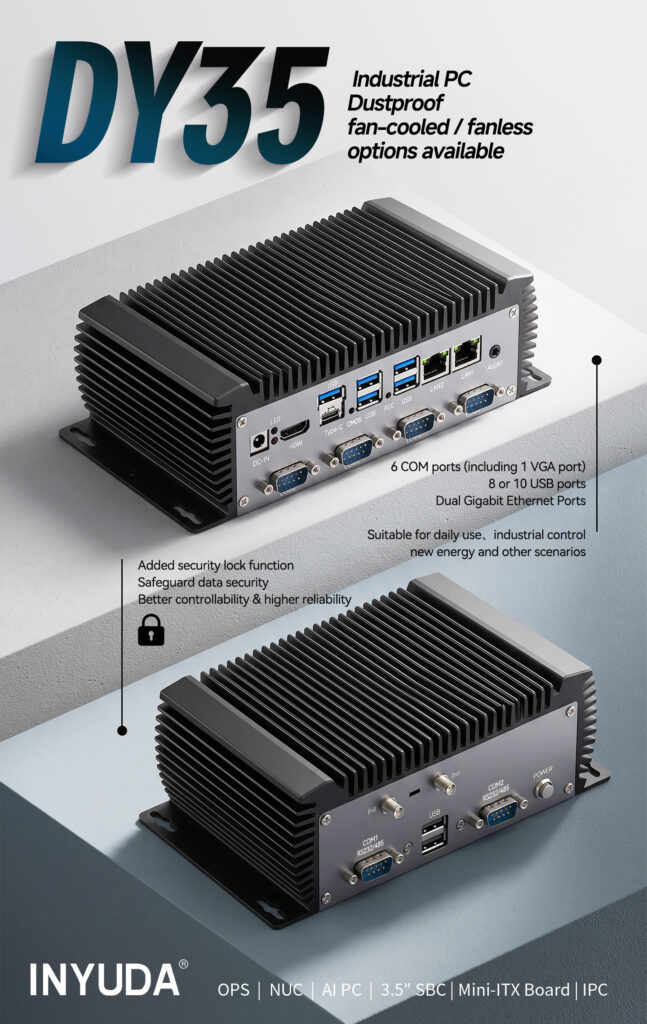

Industrial PC
Cost Effective Level
IPC DY35-678U
Model: IPC DY35-678u
CE
FCC
RoHS

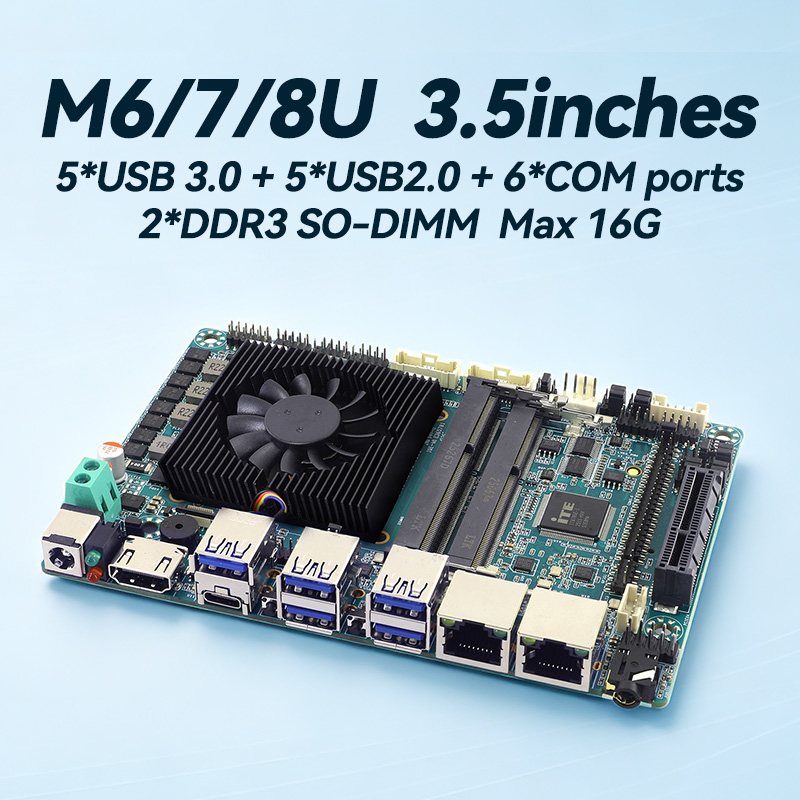

- CPU Platform
FCBGA1356 socket, compatible with full series 6th/7th/8th Gen Intel® processors, integrated Intel® UHD Graphics.
- Memory
2×SO-DIMM DDR3 1600MHz slots, maximum capacity 16GB.
- Multi-Display Output
External HDMI, onboard VGA pin header; LVDS and eDP (mutually exclusive, switch via jumper).
- Storage Interfaces
1×mSATA slot, 1×SATA interface for 2.5-inch SSD/HDD.
- Abundant USB Ports
5×external USB3.0; 4×internal USB2.0 pin headers + 1×external USB2.0 Type-C.
MOQ: 50 units
Technical Specifications
Full Product Specifications
| CPU Model | Support Intel® N100/ N95/ N150 N Series |
| Platform | Intel® |
| Cores / Threads | 4cores 4threads |
| Graphics | Intel® UHD Graphics |
| Memory | 2*DDR3 1333/ 1600MHz |
| Max Memory | 16GB |
| Storage | 1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*MSATA Interfaces |
| Storage Expansion | 1×M.2 E Key 2230 for Wi-Fi & Bluetooth; 1×PCIe x4 slot for expansion cards; 1×Mini PCIe slot for 4G modules with SIM support. Reserved TPM header for encryption modules. |
| Interface Type | Quantity | Specification |
|---|---|---|
| USB | 8 | 4*USB3.0, 4*USB2.0 |
| LAN | 2 | 2 x Intel I225V 2.5G RJ45 ports |
| Display Port | 1 | HDMI |
| COM | 6 | COM1/COM2 configurable RS232/RS485 via jumper and BIOS; COM3–COM6 default RS232. Reserved GPIO control header |
| Operating Temperature | -20 to 60 ℃ |
| Power Input | 12V 7A 82W |
| Power Consumption | 45-115W |
| Protection | Air discharge ± 8 KV Class C ± 6 KV of grade B Contact discharge is ± 6 KV Class C ± 3 KV Grade B * Test of the whole machine under good grounding |
| Dimensions | 180*119*30MM |
| Weight | 0.9KG |
| Mounting Method |
Wall Mount
VESA
Embedded
|

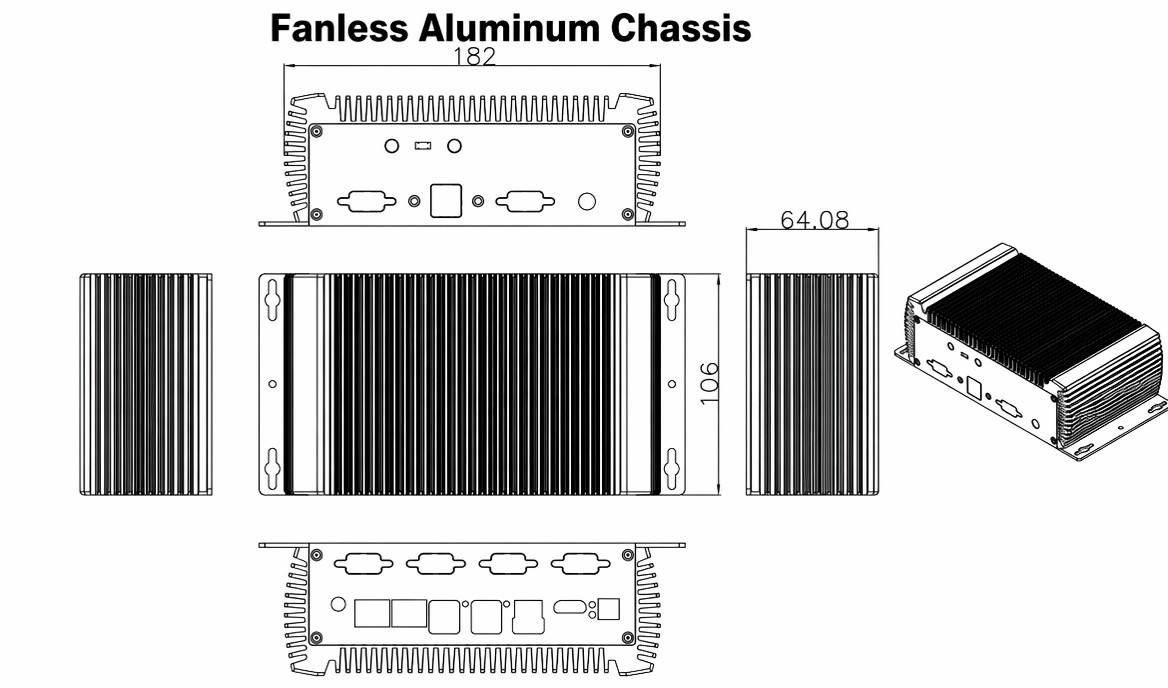

| Dimension Drawing | structure-of-the-case.jpg |
