OPS RK3576
Model: OPS RK3576
-
Core Hardware
Powered by RK3576 processor, paired with ARM Mali-G52 MC3 GPU and RGA v2.5. Supports LPDDR4/LPDDR4X-4266 and LPDDR5-4800 memory.
-
Display
OPS HDMI: 4K@60Hz; External HDMI IN/OUT: 1080P@60Hz.
-
Storage & Expansion
Equipped with eMMC, UFS, SD/MMC and FSPI interfaces. Features Mini PCIe and TF card slots. Reserved ports for 4G, Wi-Fi and Bluetooth modules.
-
Network
Dual Realtek RTL8211F gigabit Ethernet ports. One port supports PoE.
-

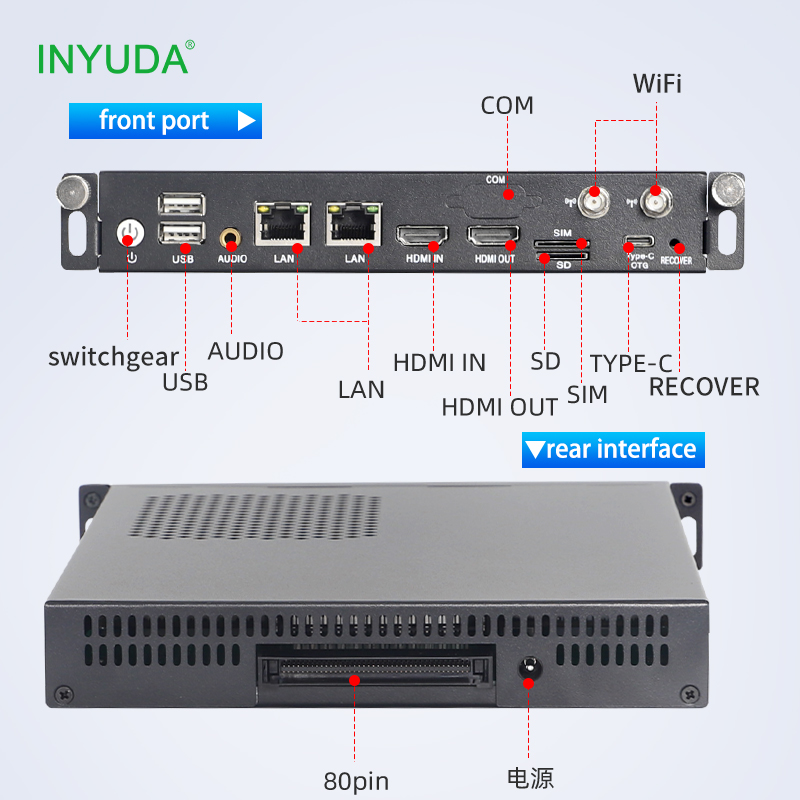

I/O Interfaces
1×USB3.0, 2×USB2.0, 3.5mm combo audio jack, IR port, Type-C OTG and SIM slot. Multiple RS232 and UART ports are reserved.
-
Function Buttons & OPS Port
Comes with power, reset and one-key update buttons. Standard 80-pin OPS interface for plug-and-play use.
Full Product Specifications
| CPU Model | RK3576 processor, paired with ARM Mali-G52 MC3 GPU and RGA v2.5 |
| Platform | arm |
| Cores / Threads | 8 cores |
| Graphics | 6TOP Caculation |
| Memory | Supports LPDDR4/LPDDR4X-4266 |
| Max Memory | UP to 16GB |
| Storage | 1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch） |
| Storage Expansion | 1*Mini PCIE 5G Module |
| Interface Type | Quantity | Specification |
|---|---|---|
| LAN | 2 | 2x Realtek RTL8211F gigabit Ethernet |
| HDMI | 2 | HDMI in and HDMI out |
| USB | 2 | USB2.0 |
| SD CARD | 1 | TF Card Slot |
| Operating Temperature | -20 to 60 ℃ |
| Power Input | 12V 7A 82W |
| Power Consumption | 8-15W |
| Protection | Air discharge ± 8 KV Class C ± 6 KV of grade B Contact discharge is ± 6 KV Class C ± 3 KV Grade B * Test of the whole machine under good grounding |
| Dimensions | 180*119*30MM |
| Weight | 0.8KG |
| Mounting Method |
Embedded
|
| Dimension Drawing | M12U-OPS-机箱new.pdf |
