Key Features
CPU
N100
Memory
LPDDR5 4800MHz
Storage
M.2 2242 SSD
Operating Temp
-20 to 60℃
Mini NUC PC
Cost Effective Level
JB01S N100
Model: JB01S
CE
FCC
RoHS
Features
1. Ultra-Compact Form Factor
2. Powerful Processing Performance
3. High-Speed Memory & Storage Configuration
4. Stable & High-Speed Network Connectivity
5. Rich Expandable Interfaces
6. User-Friendly System & Design
MOQ: 100 units
Technical Specifications
Full Product Specifications
| CPU Model | N100 |
| Platform | Intel® |
| Cores / Threads | 4 Cores 4 Threads |
| Graphics | Intel® UHD Graphics, (up to 1GHz) |
| Memory | LPDDR5 4800MHz |
| Max Memory | 16GB |
| Storage | M.2 2242 SSD |
| Storage Expansion | WIFI Intel AX201 |

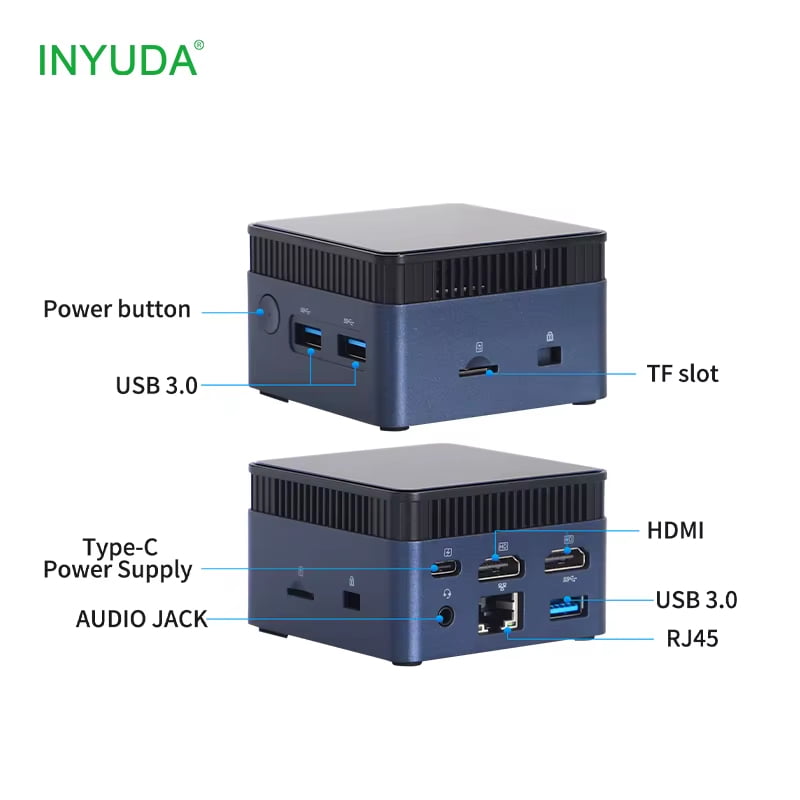

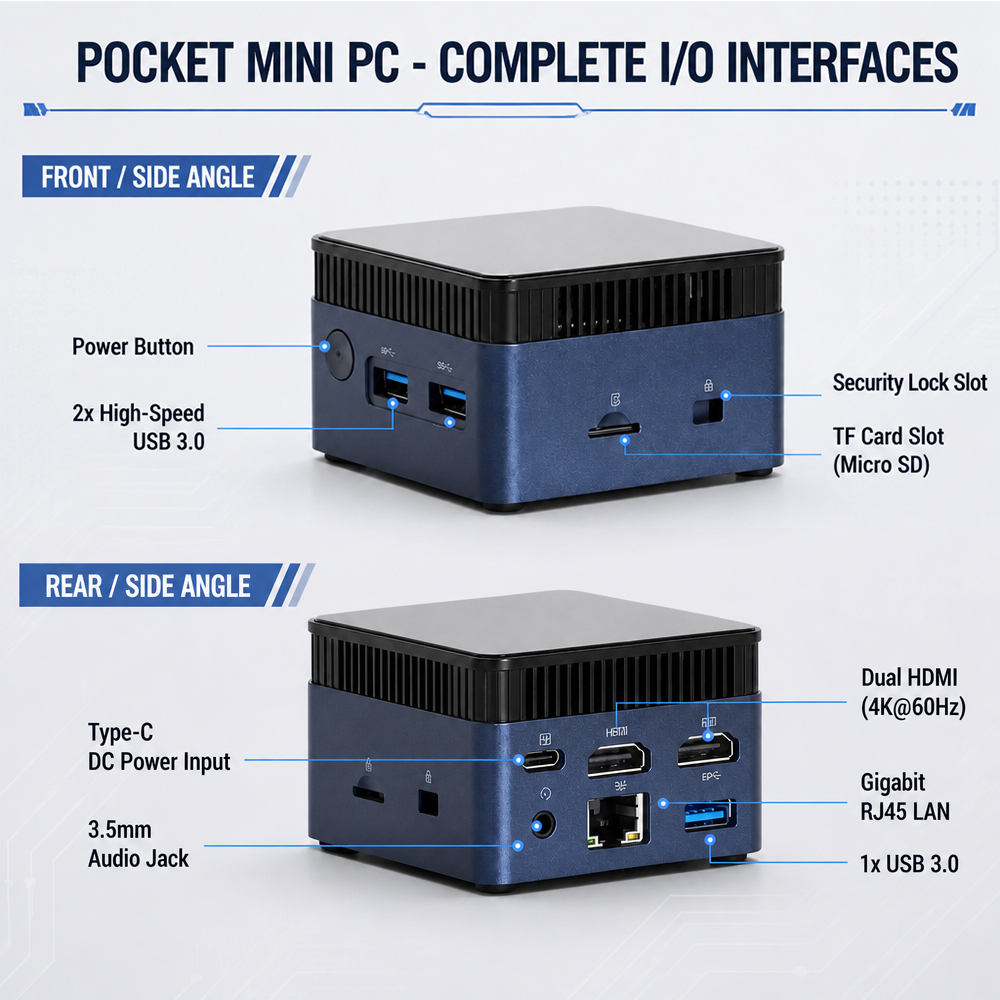

| Interface Type | Quantity | Specification |
|---|---|---|
| LAN | 1 | RJ45 port, 1000M/100M/10M |
| USB | 3 | USB3.2 |
| HDMI | 2 | HDMI V2.0*2 |
| TF Card | 1 | Max to 128GB |
| Operating Temperature | -20 to 60℃ |
| Power Input | DC 12V 3A |
| Power Consumption | 15-25W |
| Protection | Compact mini Size |

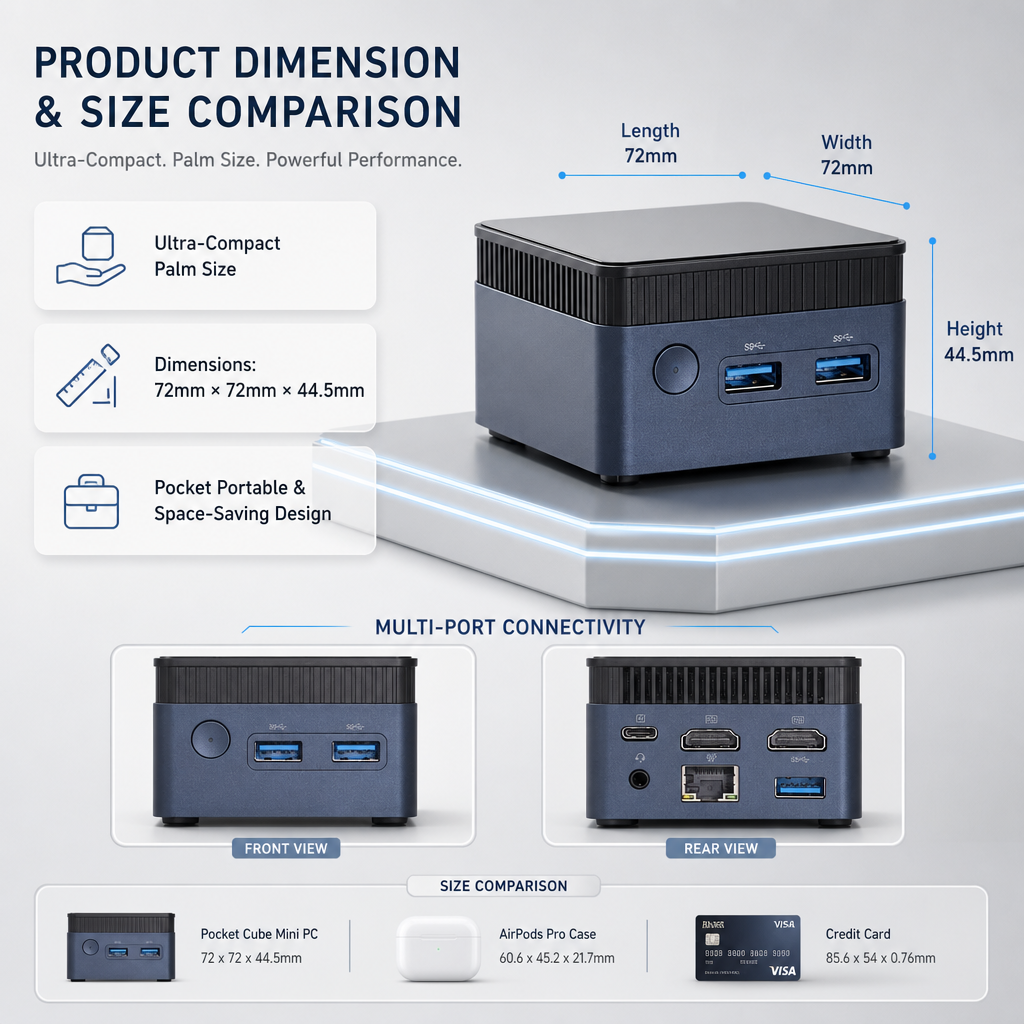

| Dimensions | 72*72*44.5MM |
| Weight | 0.233KG |
| Mounting Method |
Wall Mount
|
| Dimension Drawing | Detail-02.jpg |
