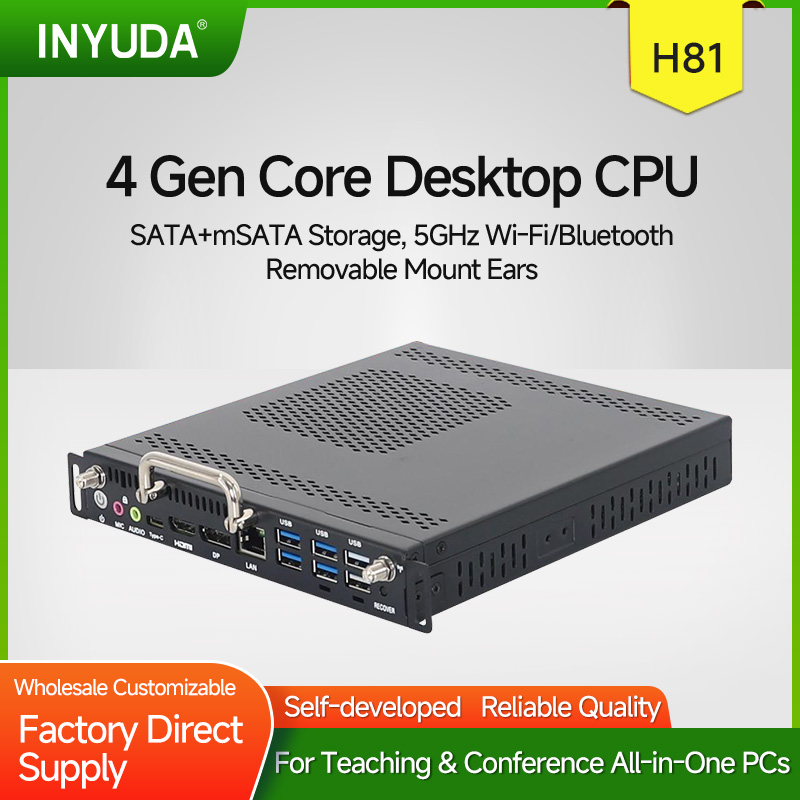

OPS-H81
OPS-H81
Key Features
CPU Support LGA1150 socket, supports Celeron™, Pentium™, 4th Gen Intel® Core™ i3/i5/i7 processors
Memory DDR3 1333/ 1600MHz
Storage 1*MSATA solt Support SSD + 1*SATA 3.0 Interfaces
Operating Temp -20 to 60 ℃
OPS Slot PC Cost Effective Level

OPS-H81

Model: OPS H81 4th Gen

CE FCC RoHS

  1. CPU & Chipset

    LGA1150 socket with Intel H81 chipset, compatible with Intel 4th Gen Celeron, Pentium, Core i3/i5/i7 processors.

  2. Memory

    Dual DDR3 slots,, maximum memory up to 16GB.

  3. Display Output

    Equipped with HDMI, DP and standard 80-pin OPS port, supports 4K@60Hz video output.

  4. Storage

    1× SATA 3.0 interface + 1× MSATA slot, flexible storage expansion.

  5. Network & Wireless

    Onboard gigabit Ethernet. Built-in Mini PCIE slot for Wi-Fi and Bluetooth modules.

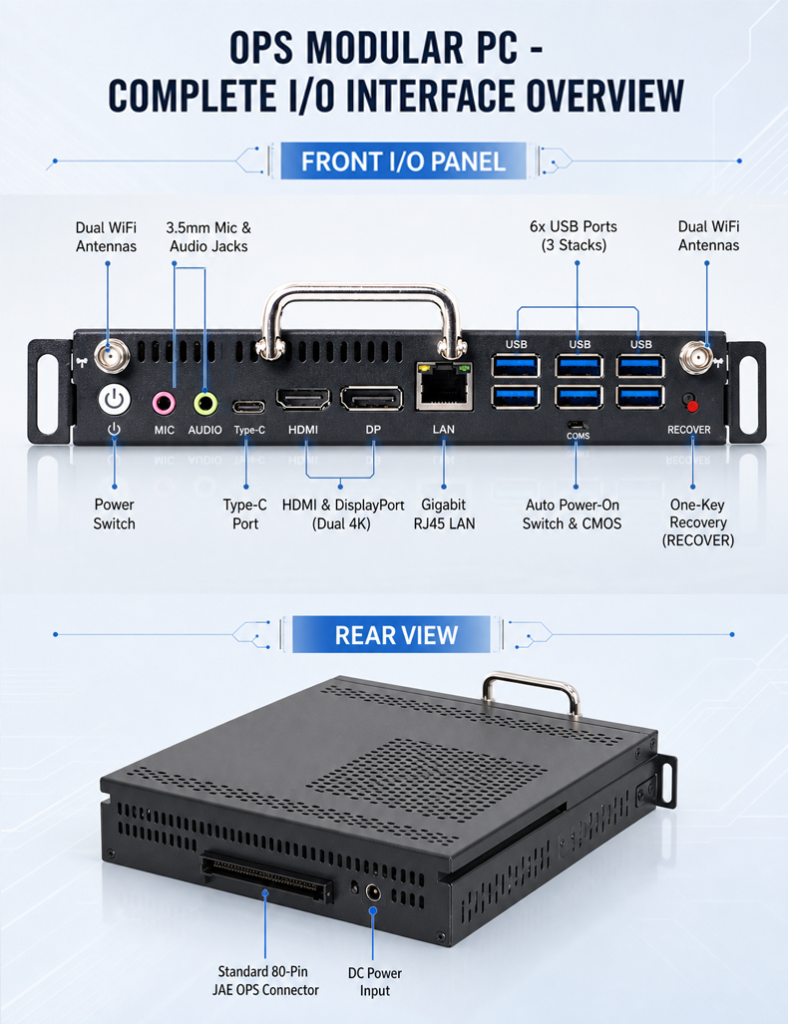

  6. I/O Interfaces

    Multiple USB2.0 & USB3.0 ports, audio jack, power button and one-key recovery button. Standard 80-pin OPS interface for plug-and-play.

MOQ: 50 units
Request a Quote Downloads
Technical Specifications

Full Product Specifications

CPU Model Support LGA1150 socket, supports Celeron™, Pentium™, 4th Gen Intel® Core™ i3/i5/i7 processors
Platform Intel®
Cores / Threads 4cores 4threads
Graphics Intel® HD Graphics 4600
Memory DDR3 1333/ 1600MHz
Max Memory 64GB
Storage 1*MSATA solt Support SSD + 1*SATA 3.0 Interfaces
Storage Expansion 1*Mini PCIE solt
Interface Type Quantity Specification
USB 6 4*USB3.0, 2*USB2.0
LAN 1 Realtek gigabit Ethernet
Display Port 2 HDMI, DP
COM 1 optional COM for 42MM Case
Operating Temperature -20 to 60 ℃
Power Input 19V 5A
Power Consumption 65-145W
Protection Air discharge ± 8 KV Class C ± 6 KV of grade B Contact discharge is ± 6 KV Class C ± 3 KV Grade B * Test of the whole machine under good grounding
Dimensions 195*180*42/30MM
Weight 1.2KG
Mounting Method
Embedded
