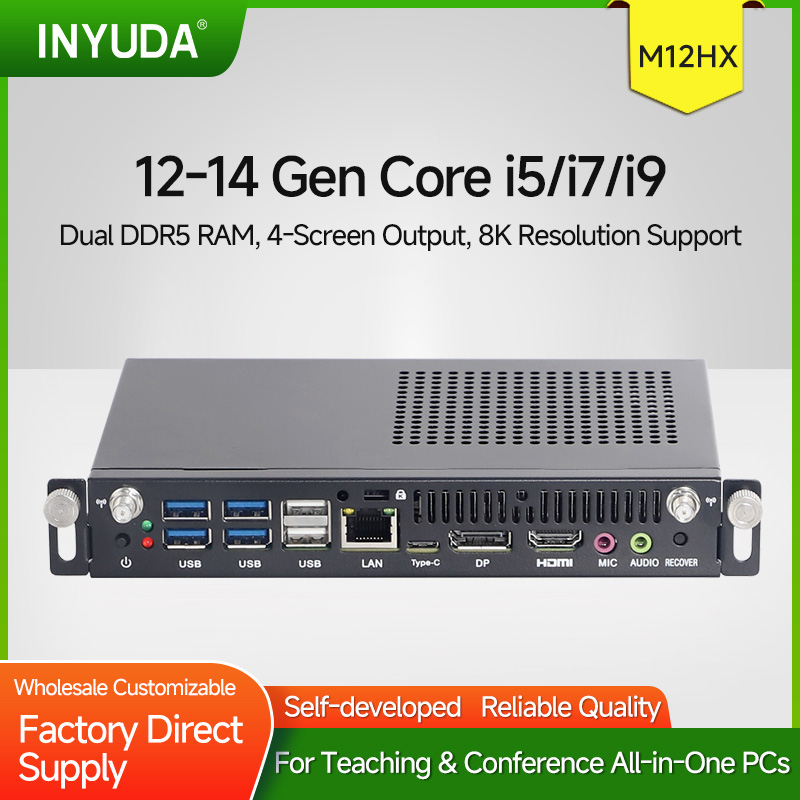

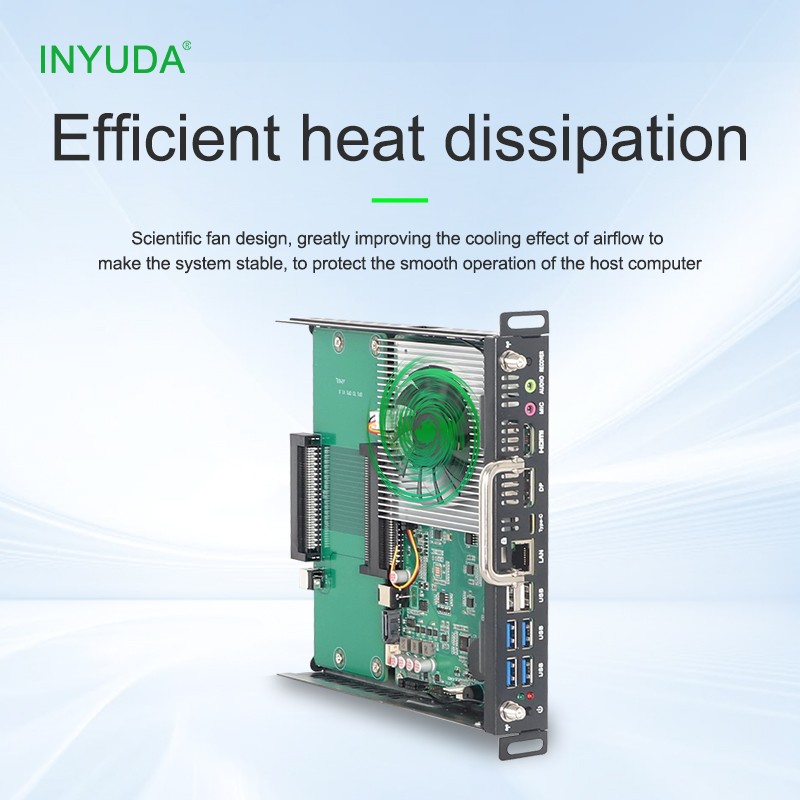

OPS-M14HX
Model: OPS M14HX I3 I5 I7
1. CPU
Supports Intel 12th/13th/14th Gen HX series Core i5/i7/i9 mobile processors
2. Memory

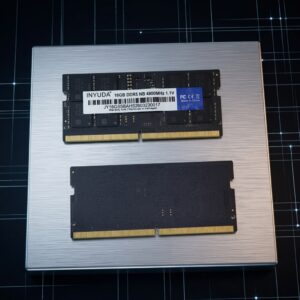

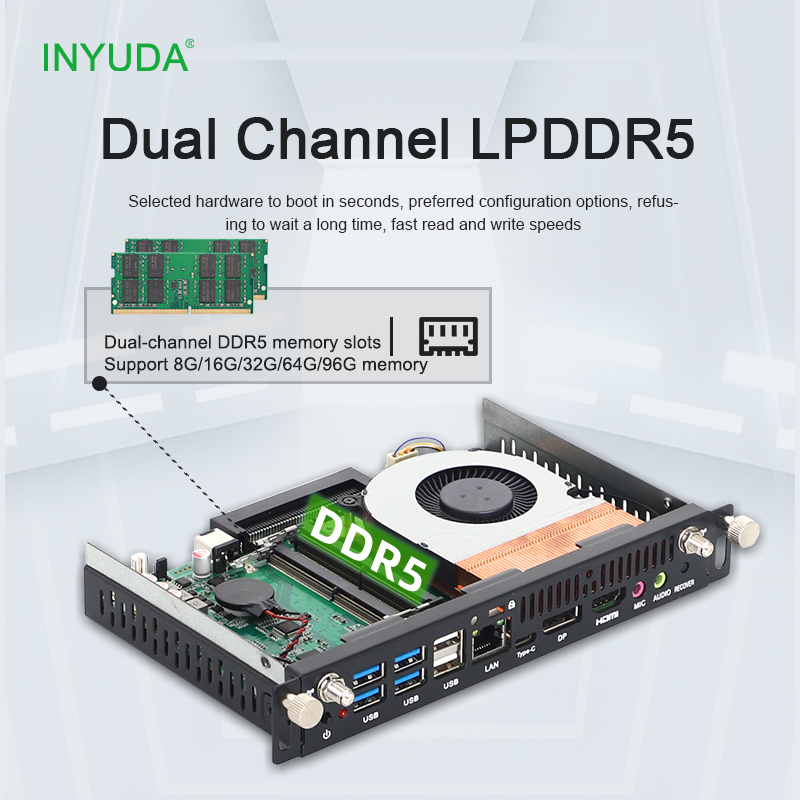

Dual SO-DIMM DDR5 slots, compatible with 4800/5200/6000/6400MHz; max up to 128GB
3. Multi-display Output
External rear I/O: HDMI, DP, Type-C DP
Standard 80-pin JATEX OPS port with built-in HDMI & DP signals
Resolution support: HDMI up to 4096×2304@60Hz; DP up to 7680×4320@60Hz
4. Dual Storage Architecture
1× SATA 3.0 port for 2.5-inch SSD/HDD, with dedicated HDD power header
1× M.2 M Key 2280 slot, auto-switchable between NVMe and SATA protocols via jumpers
1× M.2 E Key 2230 slot for Wi-Fi & Bluetooth modules
5. Abundant USB & Serial Interfaces
Rear I/O: 4×USB3.2 Gen2, 2×USB2.0
Internal 9-pin RS232 COM header; hardware jumper to switch COM signal to OPS UART TX/RX
80pin OPS port integrates extra 4×USB3.2 + 2×USB2.0 signals
Full Product Specifications
| CPU Model | Support Intel® Core HX Series Mobile Processor |
| Platform | Intel® |
| Cores / Threads | 20cores 28threads |
| Graphics | Intel® UHD Graphics for 14th Gen Intel® Processors |
| Memory | DDR5 4800/ 5600MHz |
| Max Memory | 128GB |
| Storage | 1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*SATA 3.0 Interfaces |
| Storage Expansion | 1*M.2 E Key 2230 solt |
| Interface Type | Quantity | Specification |
|---|---|---|
| USB | 6 | 4*USB3.0, 2*USB2.0 |
| LAN | 1 | Realtek gigabit Ethernet, optional 2*LAN |
| Display Port | 3 | HDMI, DP, TypeC DP |
| COM | 1 | optional COM for Asia 42MM Case |
| Operating Temperature | -20 to 60 ℃ |
| Power Input | 12V 7A 82W |
| Power Consumption | 45-115W |
| Protection | Air discharge ± 8 KV Class C ± 6 KV of grade B Contact discharge is ± 6 KV Class C ± 3 KV Grade B * Test of the whole machine under good grounding |

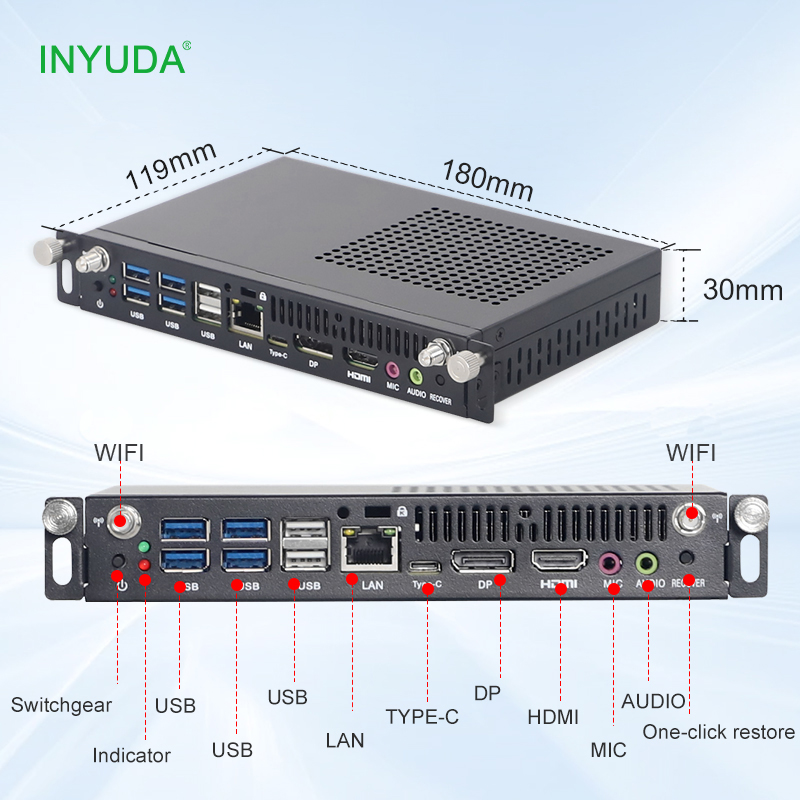

| Dimensions | 180*119*30MM or 195*180*42/30MM |
| Weight | 0.9KG |
| Mounting Method |
Embedded
|
