Key Features
CPU
Support Intel® Ultra 100&200 Series Mobile Processor
Memory
DDR5 4800/ 5600MHz
Storage
1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*SATA 3.0 Interfaces
Operating Temp
-20 to 60 ℃
OPS Slot PC
Premium Level
OPS-M14U

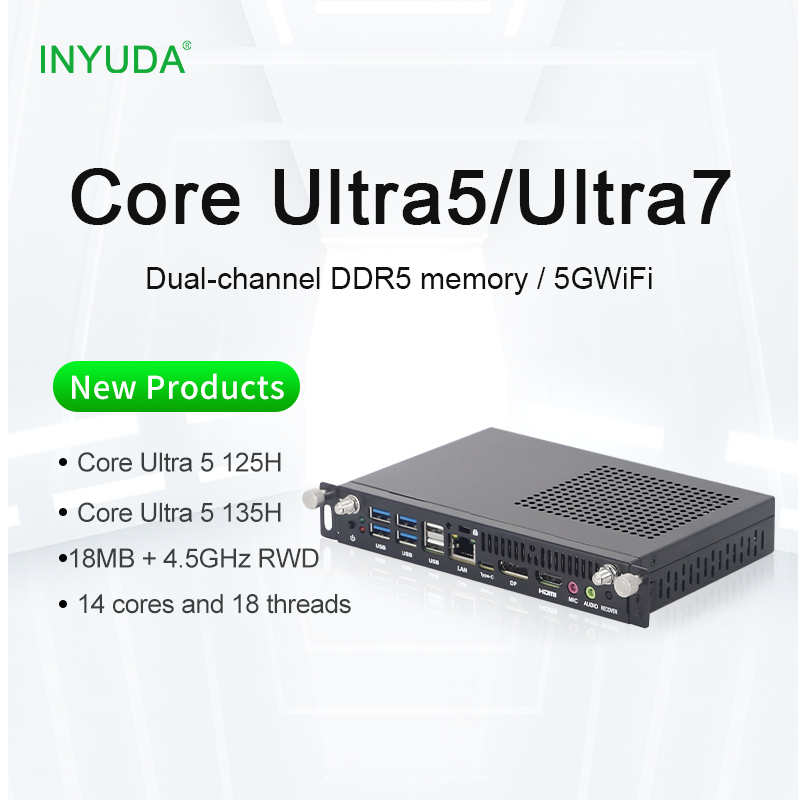

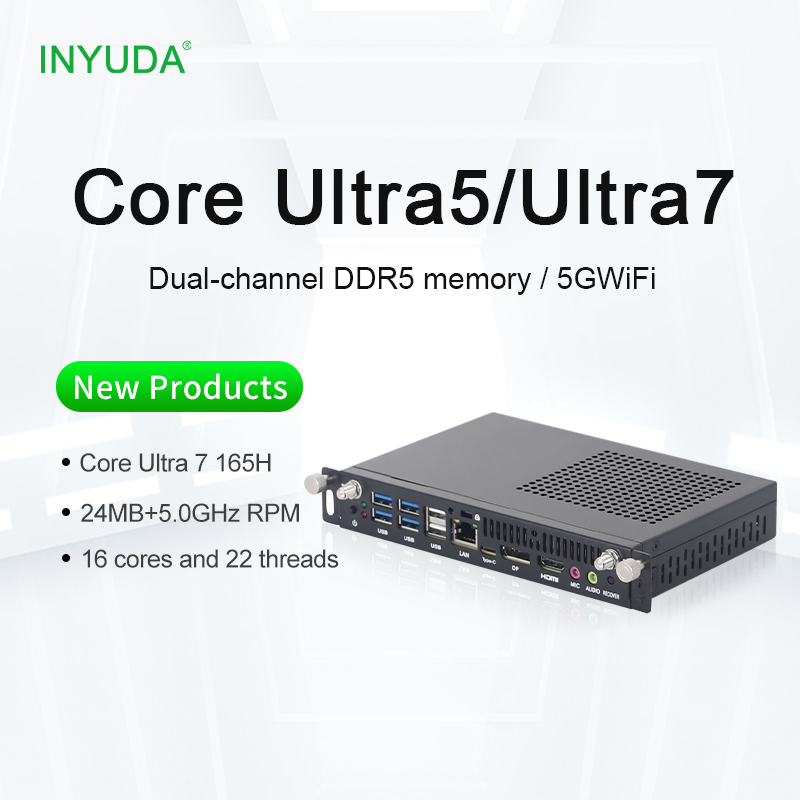

Model: OPS M14U Ultra 5/7/9
CE
FCC
RoHS
Features
1. Powerful Latest-Generation Performance
2. Excellent Display Performance
3. Ultra-Large & High-Spec Memory & Flexible Storage
4. Rich Interfaces & Strong Expandability
5. Standard OPS Design & Reliable Heat Dissipation
6. Wide Working Environment Adaptability
7. Versatile Power Supply & Practical Functions
MOQ: 50 units
Technical Specifications
Full Product Specifications
| CPU Model | Support Intel® Ultra 100&200 Series Mobile Processor |
| Platform | Intel® |
| Cores / Threads | 14cores 18threads |
| Graphics | Intel® Arc™ graphics |
| Memory | DDR5 4800/ 5600MHz |
| Max Memory | 128GB |
| Storage | 1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*SATA 3.0 Interfaces |
| Storage Expansion | 1*M.2 E Key 2230 solt |
| Interface Type | Quantity | Specification |
|---|---|---|
| USB | 6 | 4*USB3.0, 2*USB2.0 |
| LAN | 1 | Realtek gigabit Ethernet, optional 2*LAN |
| Display Port | 3 | HDMI, DP, TypeC |
| COM | 1 | optional COM for Asia 42MM Case |
| Operating Temperature | -20 to 60 ℃ |
| Power Input | 12V 7A 82W |
| Power Consumption | 45-115W |
| Protection | Air discharge ± 8 KV Class C ± 6 KV of grade B Contact discharge is ± 6 KV Class C ± 3 KV Grade B * Test of the whole machine under good grounding |
| Dimensions | 180*119*30MM |
| Weight | 0.9KG |
| Mounting Method |
