Key Features
CPU
Support Intel® Core™ I3/I5/I7/I9 Comet Lake/ Tiger Lake Mobile Processor
Memory
2*DDR4 2666/ 3200MHz
Storage
2*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*SATA 3.0 Interfaces
Operating Temp
-20 to 60 ℃
OPS Slot PC
Affordable Level
OPS-M10U
Model: OPS M10U I3 I5 I7
CE
FCC
RoHS
Features
1. Powerful Latest-Generation Performance
2. Excellent Display Performance
3. Ultra-Large & High-Spec Memory & Flexible Storage: 2xDDR4 Ram Slot+2xM.2 2280 SSD
4. Rich Interfaces & Strong Expandability

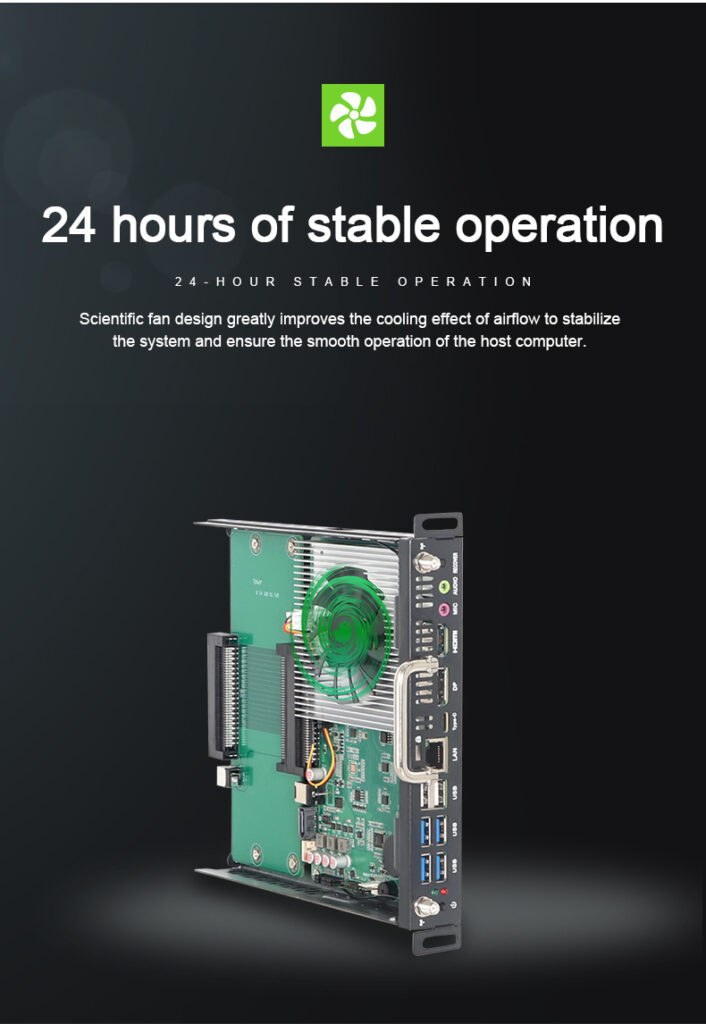

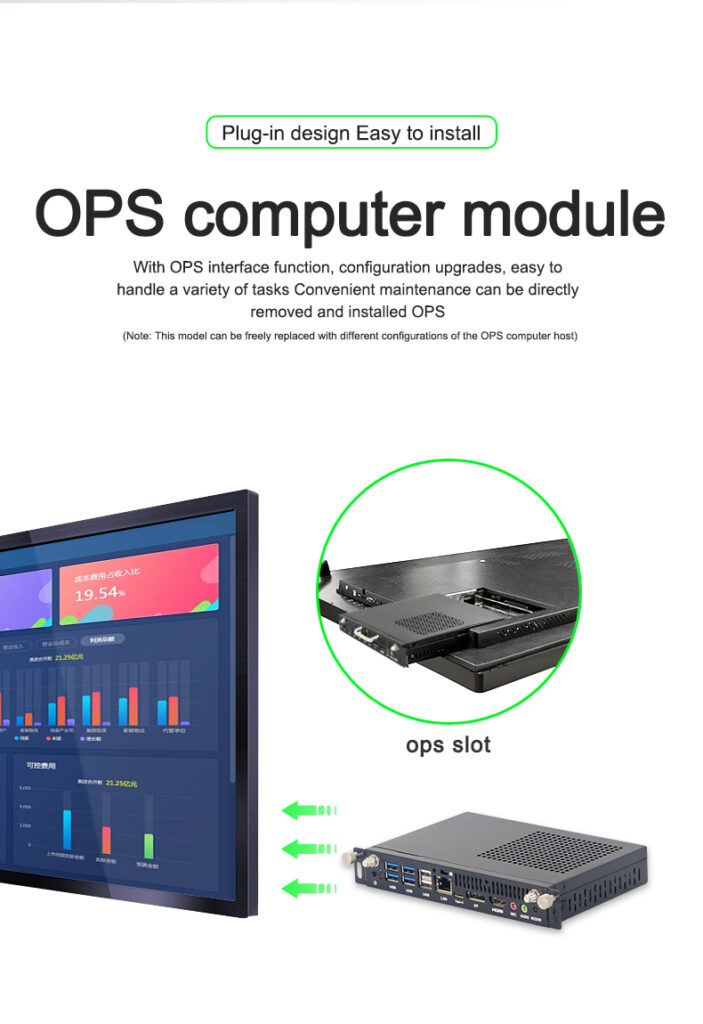

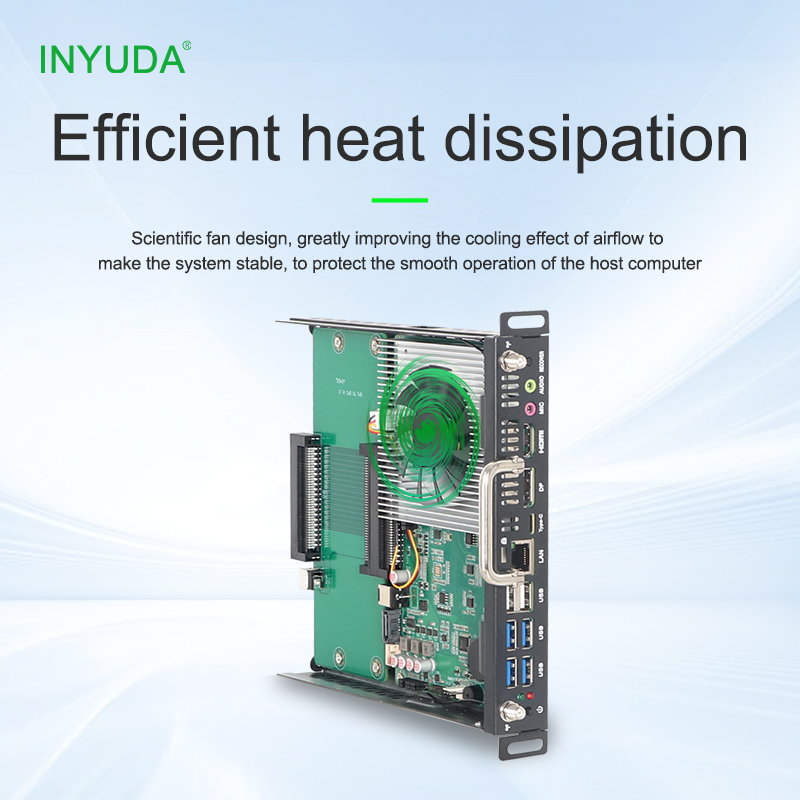

5. Standard OPS Design & Reliable Heat Dissipation
6. Wide Working Environment Adaptability
7. Versatile Power Supply & Practical Functions
MOQ: 50 units
Technical Specifications
Full Product Specifications
| CPU Model | Support Intel® Core™ I3/I5/I7/I9 Comet Lake/ Tiger Lake Mobile Processor |
| Platform | Intel® |
| Cores / Threads | 4cores 8threads |
| Graphics | Intel® UHD Graphics |
| Memory | 2*DDR4 2666/ 3200MHz |
| Max Memory | 64GB |
| Storage | 2*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*SATA 3.0 Interfaces |
| Storage Expansion | 1*M.2 E Key 2230 solt |
| Interface Type | Quantity | Specification |
|---|---|---|
| USB | 6 | 4*USB3.0, 2*USB2.0 |
| LAN | 1 | Realtek gigabit Ethernet, optional 2*LAN |
| Display Port | 2 | HDMI, DP |
| COM | 1 | optional COM for Asia 42MM Case |
| Operating Temperature | -20 to 60 ℃ |
| Power Input | 12V 7A 82W |
| Power Consumption | 45-115W |
| Protection | Air discharge ± 8 KV Class C ± 6 KV of grade B Contact discharge is ± 6 KV Class C ± 3 KV Grade B * Test of the whole machine under good grounding |

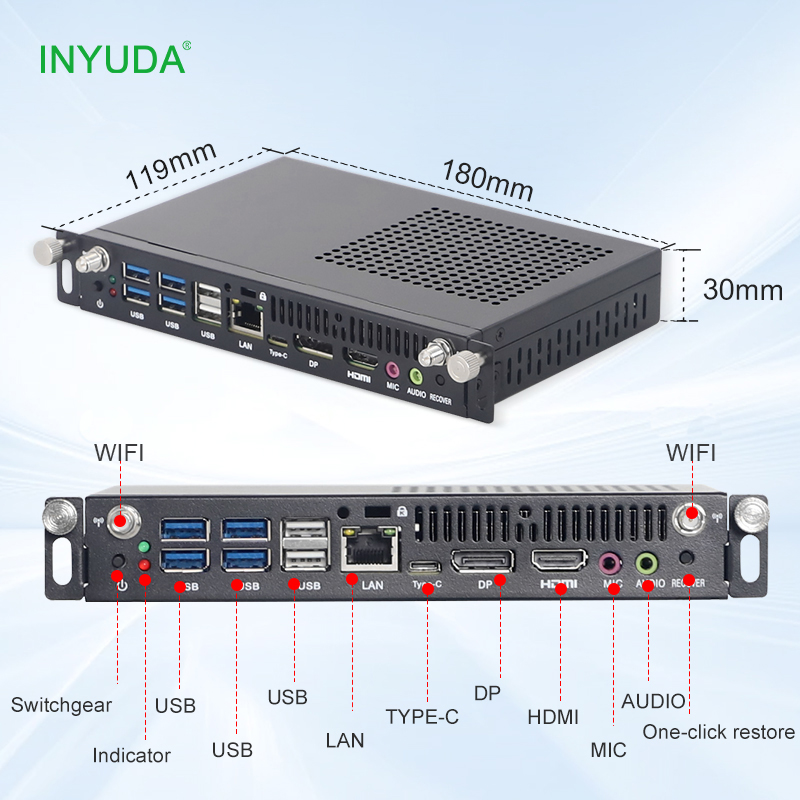

| Dimensions | 180*119*30MM |
| Weight | 0.9KG |
| Mounting Method |
