Key Features
CPU
Support LGA1700 socket, supports Celeron™, Pentium™, 12th/13th Gen Intel® Core™ i3/i5/i7 processors
Memory
DDR4 2666/ 3200MHz
Storage
1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*SATA 3.0 Interfaces
Operating Temp
-20 to 60 ℃

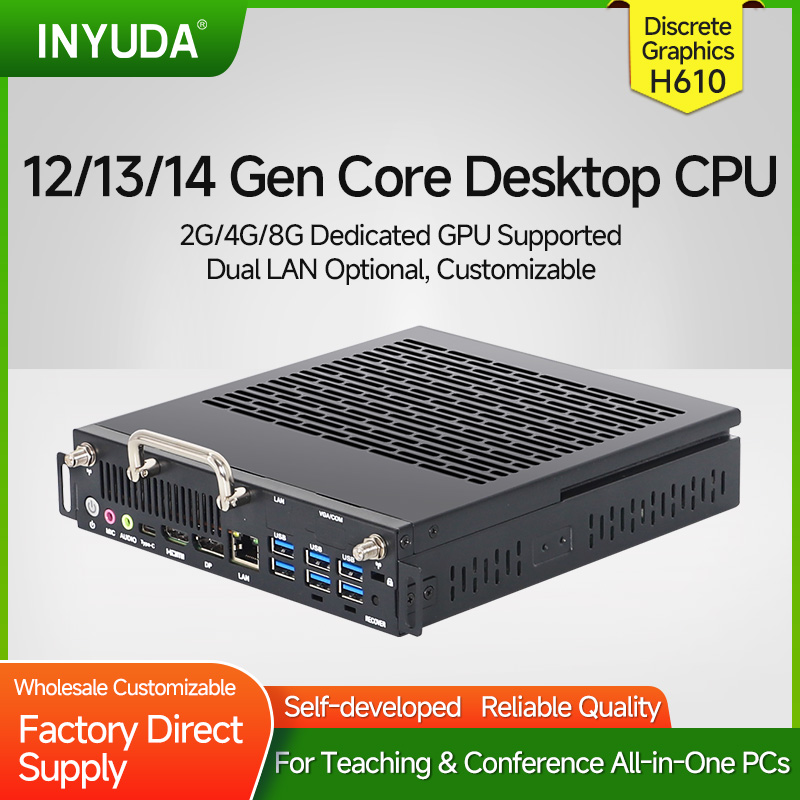

OPS Slot PC
Premium Level
OPS-H610
Model: OPS H610 12-14th Gen
CE
FCC
RoHS
Features
1. CPU & Memory
- Intel H610 chipset, LGA1700 socket, supports Celeron, Pentium, 12th/13th Gen Intel Core i3/i5/i7 processors.
- Dual DDR4 SO-DIMM slots (2133/2400/2666/3200MHz), max 64GB.
2. Display Output
- HDMI, DP and 80-pin OPS video ports, all support 3840×2160@60Hz.
- Compliant with 80-pin OPS interface, integrating video, audio, control and signal pins.
3. Storage & Expansion
- 1× SATA 3.0 interface (for 2.5” SSD/HDD); 1× M.2 2280 slot (SATA/NVMe protocol switchable via jumper).
- 1× M.2 2230 slot for Wi-Fi/Bluetooth/CNVI modules.
- 1× MXM slot for discrete graphics card.

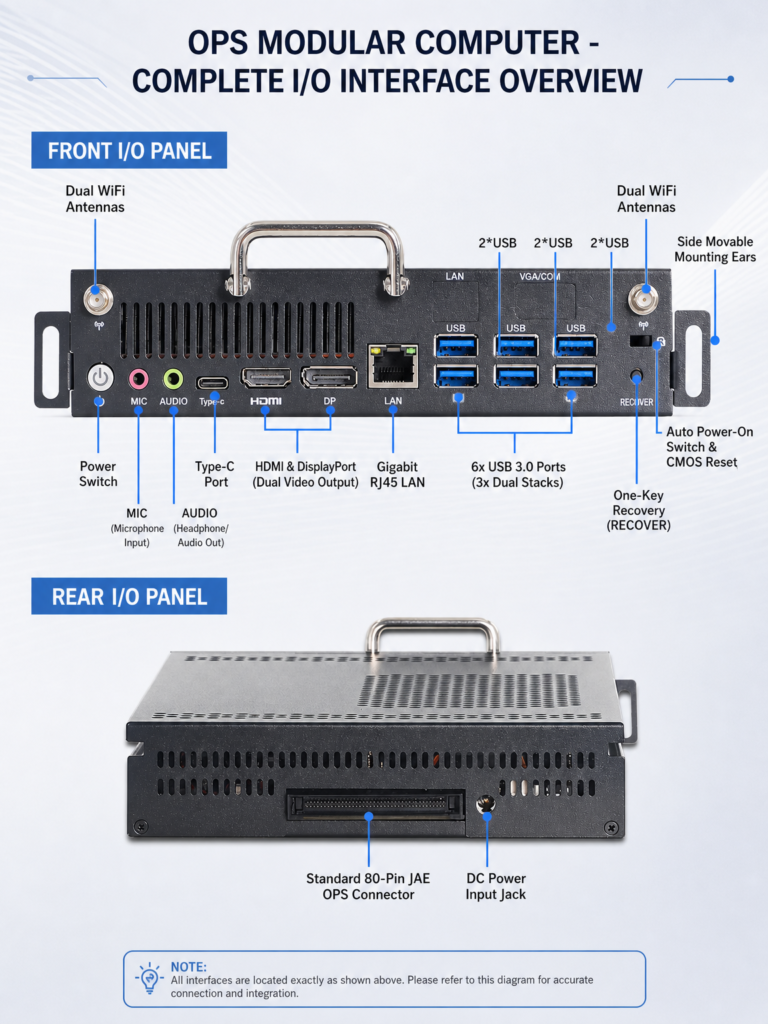

4. I/O & Functions
- 6× USB3.2, 1× Type-C, 1× Gigabit Ethernet, 1× Mic jack, 1× HD Audio jack (Realtek ALC897 chip).
- One-key recovery button.
- Reserved RS232 serial port, USB headers, CPU fan pin, and jumpers for SATA/NVMe and RS232/TTL switching.
5. Network & Power
- Onboard Realtek gigabit Ethernet (10/100/1000Mbps).
- DC 12V~19V wide-range input.
6. Form Factor & BIOS
- 6-layer PCB, dimensions 190mm×170mm.
- AMI BIOS with shortcut keys for setup.
- Internal pins for power control, fan control and hardware monitoring.
MOQ: 50 units
Technical Specifications
Full Product Specifications
| CPU Model | Support LGA1700 socket, supports Celeron™, Pentium™, 12th/13th Gen Intel® Core™ i3/i5/i7 processors |
| Platform | Intel® |
| Cores / Threads | 6cores 12threads |
| Graphics | Intel® UHD Graphics 730 |
| Memory | DDR4 2666/ 3200MHz |
| Max Memory | 64GB |
| Storage | 1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*SATA 3.0 Interfaces |
| Storage Expansion | 1*M.2 E Key 2230 solt |
| Interface Type | Quantity | Specification |
|---|---|---|
| USB | 6 | 4*USB3.0, 2*USB2.0 |
| LAN | 1 | Realtek gigabit Ethernet, optional 2*LAN |
| Display Port | 3 | HDMI, DP, TypeC |
| COM | 1 | optional COM for 42MM Case |
| Operating Temperature | -20 to 60 ℃ |
| Power Input | 12V 7A 82W |
| Power Consumption | 45-115W |
| Protection | Air discharge ± 8 KV Class C ± 6 KV of grade B Contact discharge is ± 6 KV Class C ± 3 KV Grade B * Test of the whole machine under good grounding |
| Dimensions | 195*180*42/30MM |
| Weight | 1.2KG |
| Mounting Method |
Embedded
|
