Key Features
CPU
Support LGA1700 socket, supports Celeron™, Pentium™, 12th/13th Gen Intel® Core™ i3/i5/i7 processors
Memory
DDR4 2666/ 3200MHz
Storage
1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*SATA 3.0 Interfaces
Operating Temp
-20 to 60 ℃
OPS Slot PC
Premium Level

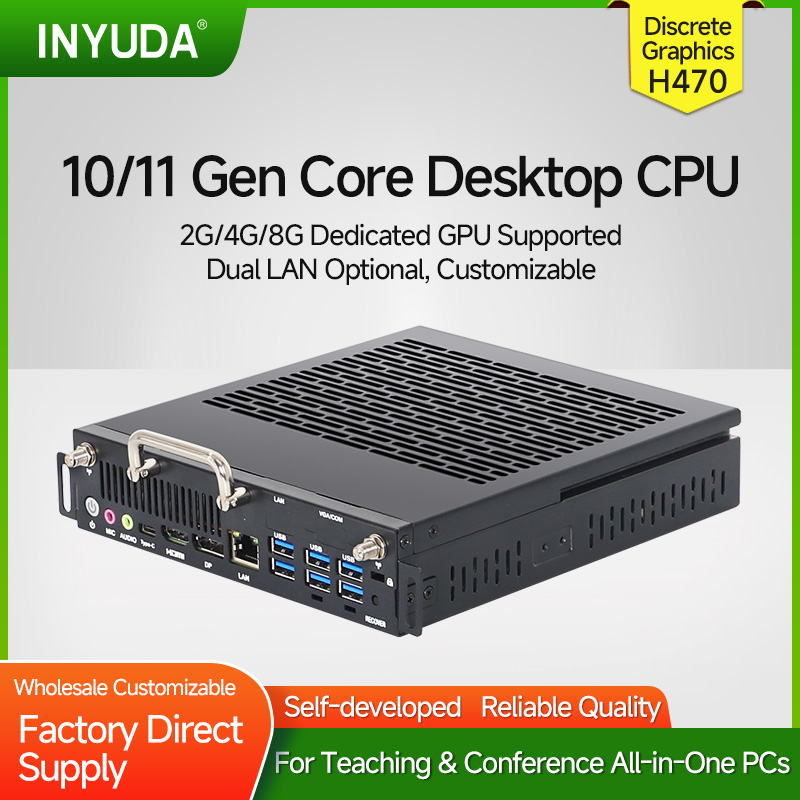

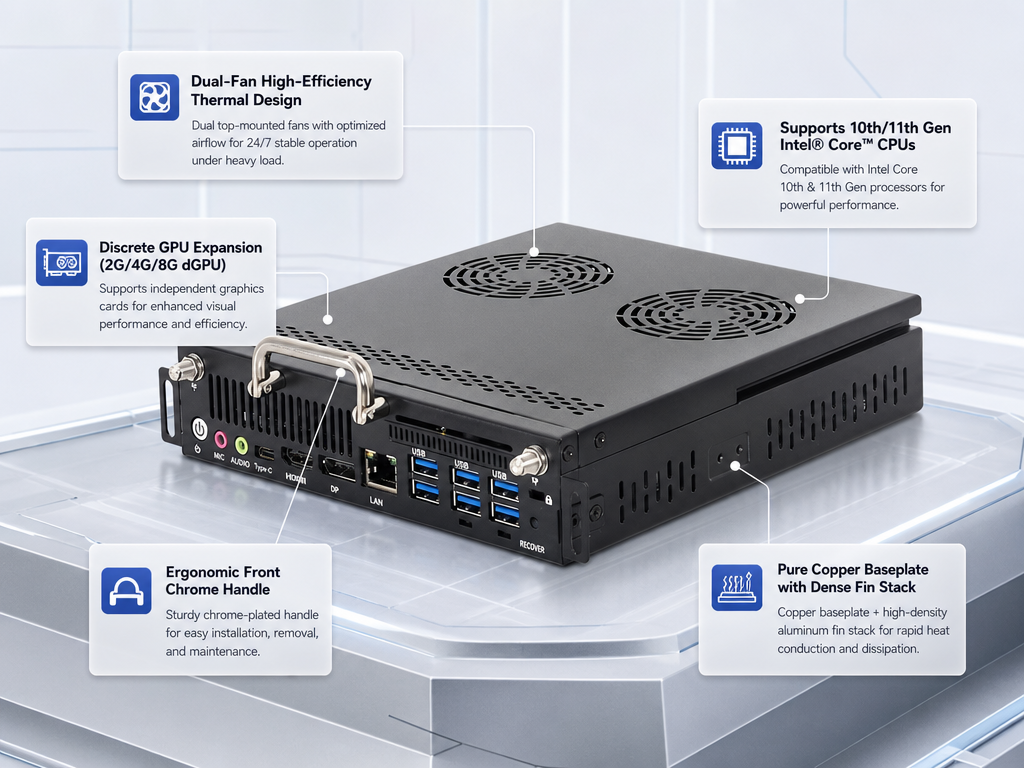

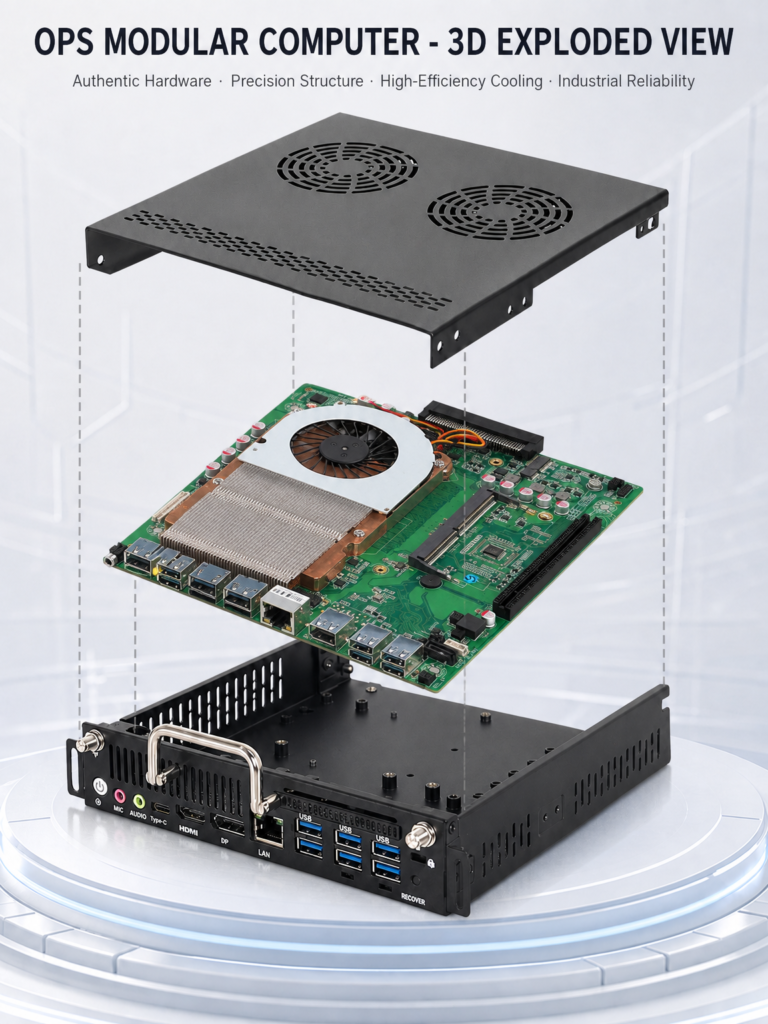

OPS-H470
Model: OPS H470 10&11th Gen
CE
FCC
RoHS
Features
1. Core Platform
6-layer PCB, size 170mm*190mm. LGA1200 socket, supports Intel 10th/11th Gen Celeron, Pentium, Core i3/i5/i7. Adopts Intel H470/Q470/Z490 chipset.
2. Memory
2 DDR4 slots (2133/2400/2666MHz), max capacity 64GB.
2 DDR4 slots (2133/2400/2666MHz), max capacity 64GB.
3. Power Supply
DC & JAE dual power input: 12V7A ~ 19V4.7A.
DC & JAE dual power input: 12V7A ~ 19V4.7A.
4. Display Interfaces
2×HDMI, 1×DP (3840×2160@60Hz), 1×VGA (1920×1080@60Hz). 80-pin OPS HDMI supports 4K@60Hz.
2×HDMI, 1×DP (3840×2160@60Hz), 1×VGA (1920×1080@60Hz). 80-pin OPS HDMI supports 4K@60Hz.
5. Audio & Network
Built-in ACL897 HD audio chip. Onboard Realtek gigabit Ethernet. 1×M.2 2230 slot for Wi-Fi/BT/CNVI.
Built-in ACL897 HD audio chip. Onboard Realtek gigabit Ethernet. 1×M.2 2230 slot for Wi-Fi/BT/CNVI.
6. Storage
1×SATA 3.0, 1×M.2 2280 (SATA/NVMe switchable).
1×SATA 3.0, 1×M.2 2280 (SATA/NVMe switchable).
7. I/O Ports
Front panel: 4×USB2.0, 2×USB3.0, Type-C, MIC, Audio, power button, one-key recovery.
Front panel: 4×USB2.0, 2×USB3.0, Type-C, MIC, Audio, power button, one-key recovery.
80-pin OPS: 2×USB2.0, 1×USB3.0, audio, optional TTL/RS232.
8. Internal Interfaces & Jumpers
SATA power, PCIe x16, CPU fan header. Jumpers for USB power, TTL/RS232, SATA/NVMe and ME update. Optional COM and VGA pins.
SATA power, PCIe x16, CPU fan header. Jumpers for USB power, TTL/RS232, SATA/NVMe and ME update. Optional COM and VGA pins.
9. BIOS
Supports standard BIOS setup via Delete key, complete function keys for configuration.
Supports standard BIOS setup via Delete key, complete function keys for configuration.
- Internal pins for power control, fan control and hardware monitoring.
MOQ: 50 units
Technical Specifications
Full Product Specifications
| CPU Model | Support LGA1700 socket, supports Celeron™, Pentium™, 12th/13th Gen Intel® Core™ i3/i5/i7 processors |
| Platform | Intel® |
| Cores / Threads | 6cores 12threads |
| Graphics | Intel® UHD Graphics 630 |
| Memory | DDR4 2666/ 3200MHz |
| Max Memory | 64GB |
| Storage | 1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*SATA 3.0 Interfaces |
| Storage Expansion | 1*M.2 E Key 2230 solt |
| Interface Type | Quantity | Specification |
|---|---|---|
| USB | 6 | 4*USB3.0, 2*USB2.0 |
| LAN | 1 | Realtek gigabit Ethernet, optional 2*LAN |
| Display Port | 3 | HDMI, DP, TypeC |
| COM | 1 | optional COM for 42MM Case |
| Operating Temperature | -20 to 60 ℃ |
| Power Input | 19V 7.89A |
| Power Consumption | 65-145W |
| Protection | Air discharge ± 8 KV Class C ± 6 KV of grade B Contact discharge is ± 6 KV Class C ± 3 KV Grade B * Test of the whole machine under good grounding |
| Dimensions | 195*180*42/30MM |
| Weight | 1.2KG |
| Mounting Method |
Embedded
|
