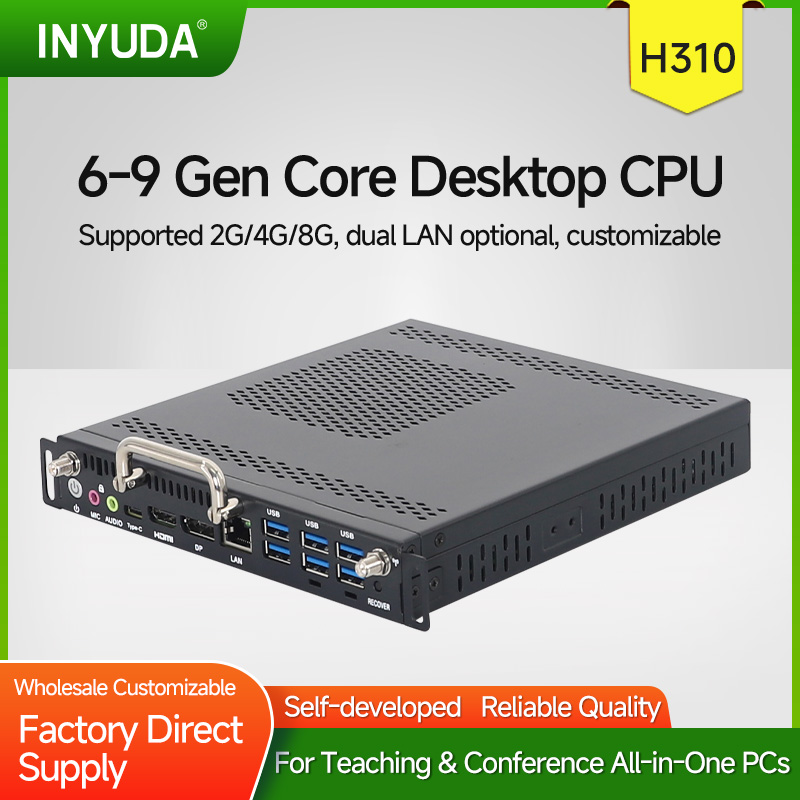

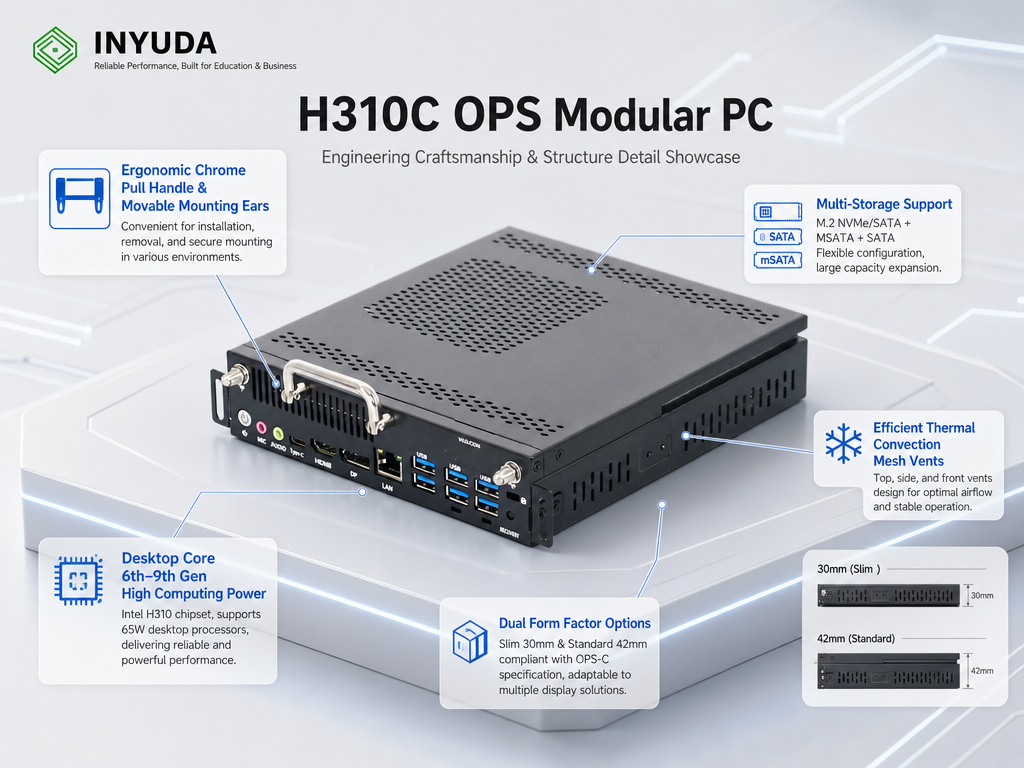

OPS-H310
Model: OPS H310 6-9th Gen
Features
-
CPU & Chipset
LGA1151 socket with Intel H310 chipset, compatible with Intel 8th/9th Gen Celeron, Pentium, Core i3/i5/i7 processors.
-
Memory
Dual DDR4 slots, supports mainstream DDR4 frequency, maximum memory up to 64GB.
-
Display Output
Equipped with HDMI, DP and standard 80-pin OPS port, supports 4K@60Hz video output.
-
Storage
1× SATA 3.0 interface + 1× M.2 slot (supports SATA/NVMe protocol), flexible storage expansion.
-
Network & Wireless
Onboard gigabit Ethernet. Built-in M.2 2230 slot for Wi-Fi and Bluetooth modules.
-
I/O Interfaces
Multiple USB2.0 & USB3.0 ports, audio jack, power button and one-key recovery button. Standard 80-pin OPS interface for plug-and-play.
-
Power & Heat Dissipation
Wide-range DC power input. Equipped with CPU fan for continuous stable operation.
-
Expandability
Reserved serial port, fan header and multiple configurable jumpers for customized use.
Full Product Specifications
| CPU Model | Support LGA1151 socket, supports Celeron™, Pentium™, 6-9th Gen Intel® Core™ i3/i5/i7 processors |
| Platform | Intel® |
| Cores / Threads | 4cores 4threads |
| Graphics | Intel® HD Graphics 530 |
| Memory | DDR4 2666/ 3200MHz |
| Max Memory | 64GB |
| Storage | 1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*SATA 3.0 Interfaces |
| Storage Expansion | 1*M.2 E Key 2230 solt |
| Interface Type | Quantity | Specification |
|---|---|---|
| USB | 6 | 4*USB3.0, 2*USB2.0 |
| LAN | 1 | Realtek gigabit Ethernet |
| Display Port | 2 | HDMI, DP |
| COM | 1 | optional COM for 42MM Case |
| Operating Temperature | -20 to 60 ℃ |
| Power Input | 19V 5A |
| Power Consumption | 65-145W |
| Protection | Air discharge ± 8 KV Class C ± 6 KV of grade B Contact discharge is ± 6 KV Class C ± 3 KV Grade B * Test of the whole machine under good grounding |
| Dimensions | 195*180*42/30MM |
| Weight | 1.2KG |
| Mounting Method |
Embedded
|
