Key Features
CPU Support Intel® Core™ I3/I5/I7/I9 Alder Lake/Raptor Lake Mobile Processor
Memory 2*DDR5/4 4800/ 3200MHz
Storage 2*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*SATA 3.0 Interfaces
Operating Temp -20 to 60 ℃
Industrial PC Premium Level

IPC DY35-12U

Model: IPC DY35-12U I5

CE FCC RoHS

 Features

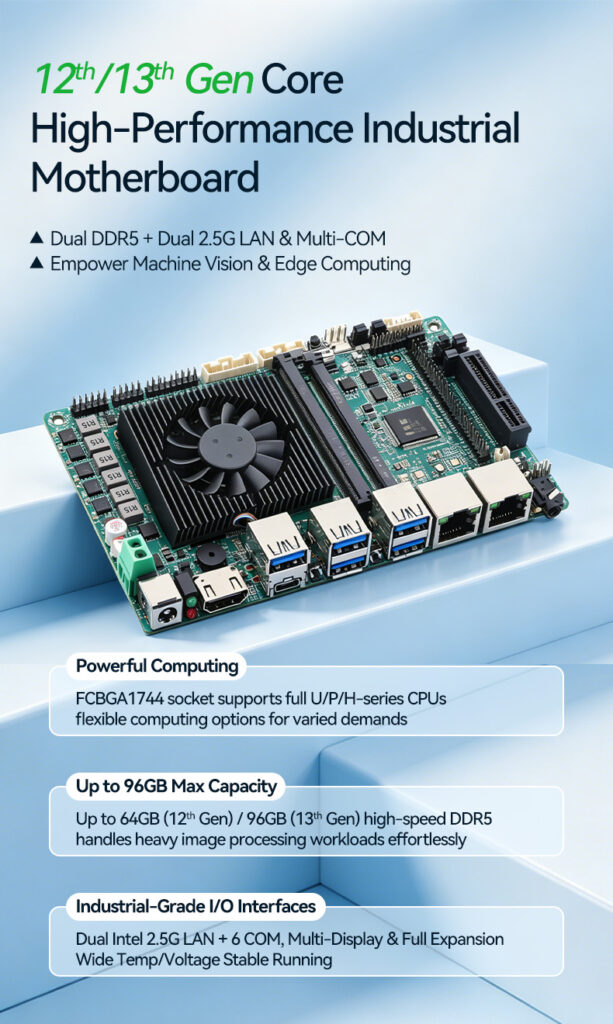

  1. Processor & Graphics

    Equipped with Intel® 12-13th Gen Core™ I3 I5 I7. Integrated Intel® UHD Graphics, max dynamic frequency 1.2GHz.

  2. Memory & Storage
  • Dual DDR5/4 SO-DIMM slots, maximum 96GB/64GB RAM
  • 1×M.2 NVMe slot pre-installed with 512GB storage; optional 2.5-inch SATA SSD/HDD bay

  1. Dual 2.5G Ethernet

    Dual Intel® I225V 2.5G RJ45 ports. Supports Wake on LAN, timed boot, PXE diskless boot.

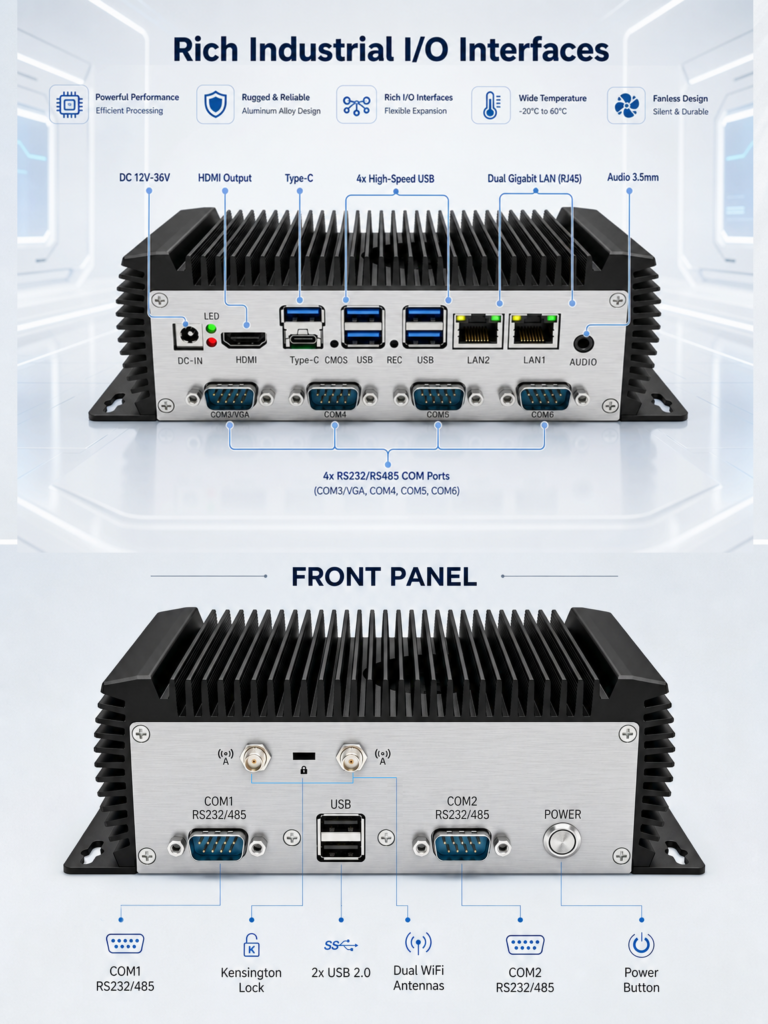

  2. Rich Serial & I/O Interfaces
  • 6×DB9 COM ports; COM1/COM2 configurable as RS232/422/485 via BIOS
  • 4×USB3.0 + 4×USB2.0
  • 1×HDMI1.4 (4096×2160@24Hz), 1×VGA (1920×1080@60Hz)
  • MIC input, speaker output, power button, DC 12V power jack
  • 8 GPIO pins (4 input + 4 output)

  1. Dual Mini PCIE Expansion Slots

    One slot for Wi-Fi/Bluetooth module; another for 3G/4G cellular modules.

MOQ: 50 units
Request a Quote Downloads
Technical Specifications

Full Product Specifications

CPU Model Support Intel® Core™ I3/I5/I7/I9 Alder Lake/Raptor Lake Mobile Processor
Platform Intel®
Cores / Threads 6cores 12threads
Graphics Intel® UHD Graphics
Memory 2*DDR5/4 4800/ 3200MHz
Max Memory 96GB/ 64GB
Storage 2*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*SATA 3.0 Interfaces
Storage Expansion 1*M.2 E Key 2230 solt
Interface Type Quantity Specification
USB 6 4*USB3.0, 2*USB2.0
LAN 2 2 x Intel I225V 2.5G RJ45 ports
Display Port 3 HDMI, VGA
COM 6 RS232/ RS485
Operating Temperature -20 to 60 ℃
Power Input 12V 7A 82W
Power Consumption 45-115W
Protection Air discharge ± 8 KV Class C ± 6 KV of grade B Contact discharge is ± 6 KV Class C ± 3 KV Grade B * Test of the whole machine under good grounding
Dimensions 182*106*64MM
Weight 1.8KG
Mounting Method
Wall Mount VESA Embedded
Dimension Drawing structure-of-the-case.jpg
