H670 ATX Gaming PC
Model: H670 ATX with Tower Case DIY Gaming PC

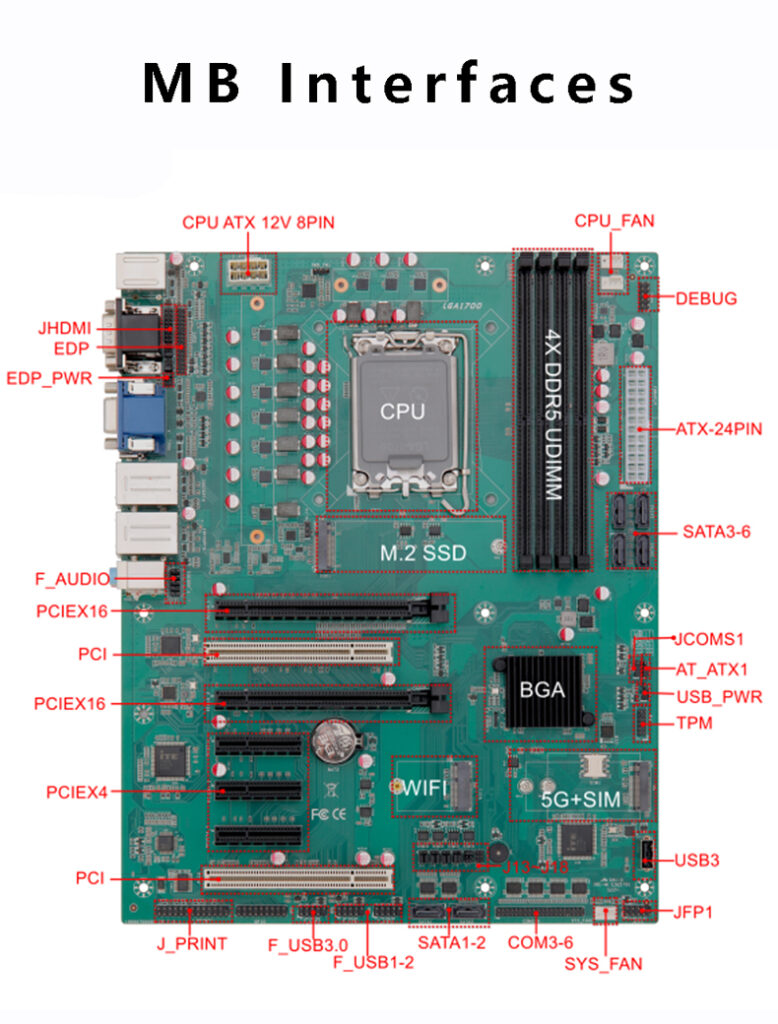

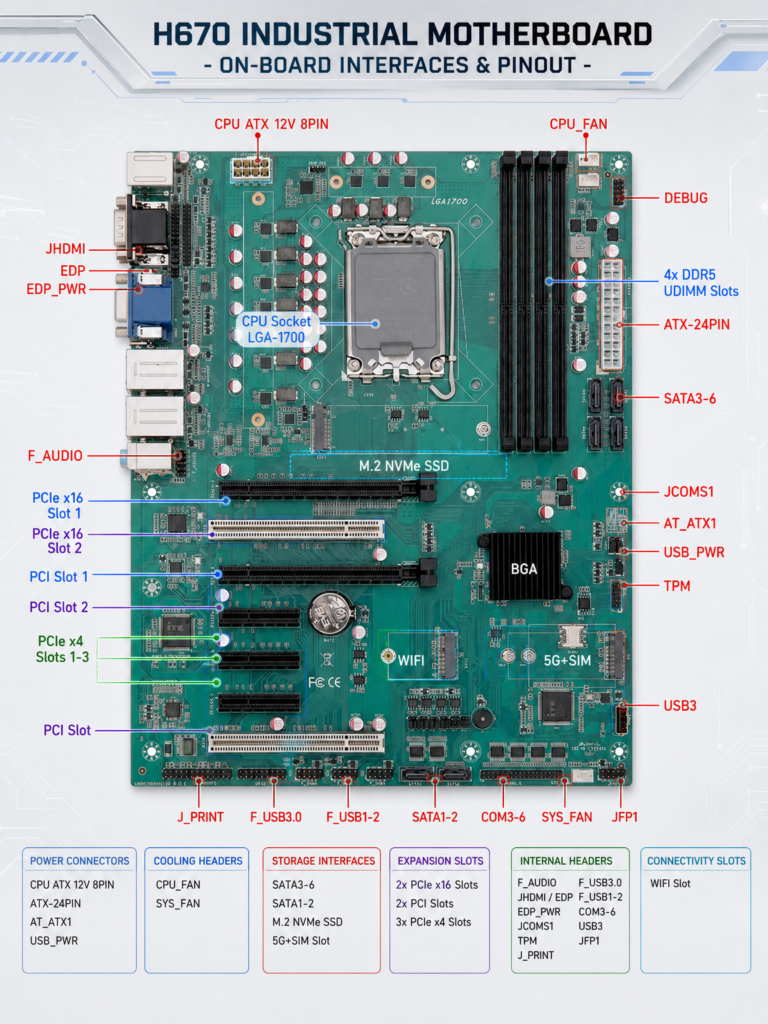

- CPU & Memory
LGA 1700 socket for latest Intel processors; 4×DDR5 UDIMM slots for high-speed memory expansion.
- Power Supply
Dual power input: ATX-24PIN + CPU ATX 12V 8PIN; compatible with standard ATX power supplies.
- Display Output
JHDMI, EDP + EDP_PWR; supports multi-display configuration for industrial and commercial scenarios.
- Storage
1×M.2 SSD slot; 6×SATA3 ports (SATA1-2 + SATA3-6) for large-capacity storage expansion.
- Expansion Slots
2×PCIEX16, 1×PCIEX4, 2×PCI slots; supports high-performance graphics cards, capture cards and legacy PCI peripherals.
- Network & Wireless
Onboard WIFI module slot + 5G+SIM slot; enables wired/wireless hybrid networking and cellular connectivity.
- Security & Management
TPM module slot for hardware-level security; supports system monitoring and fan speed control (CPU_FAN/SYS_FAN).

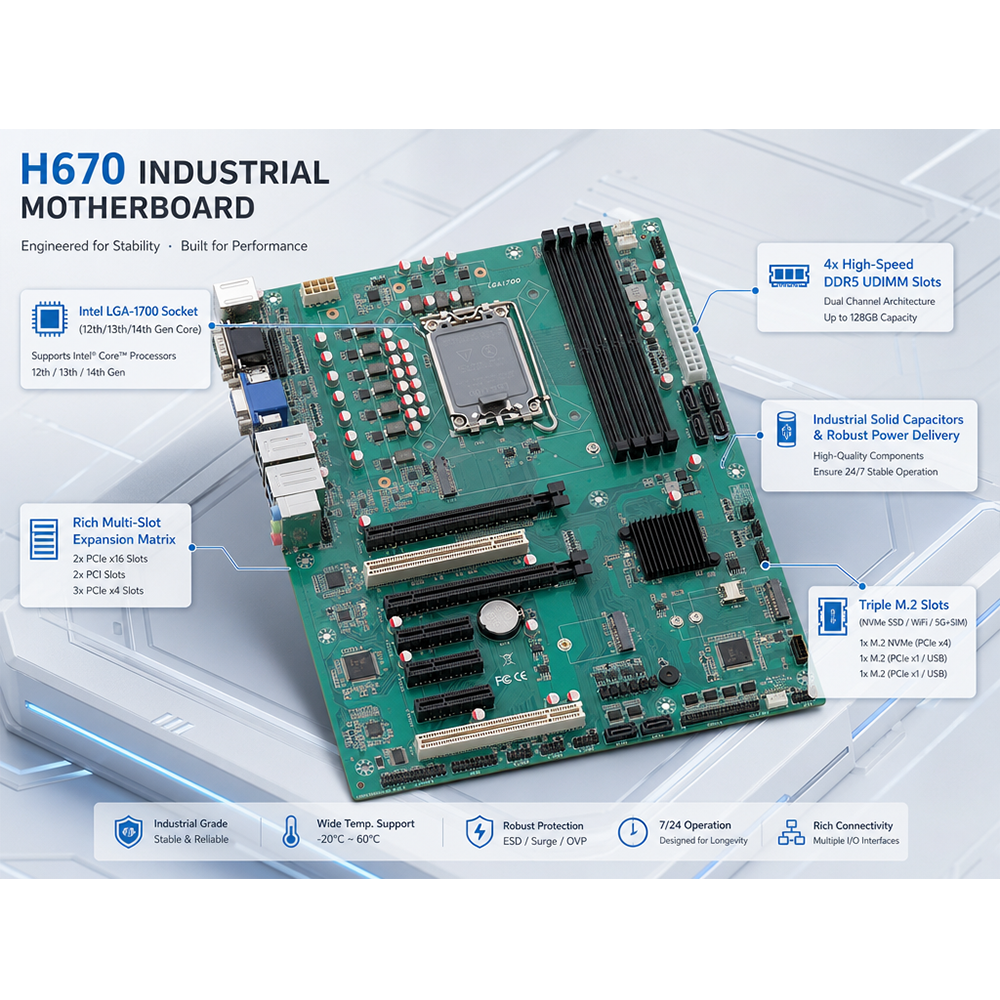

Full Product Specifications
| CPU Model | LGA 1700 socket for 12-14th Intel® Latest Desktop processors |
| Platform | Intel® |
| Cores / Threads | 20cores 28threads |
| Graphics | Intel® UHD Graphics 770 |
| Memory | DDR5 4800/ 5600MHz |
| Max Memory | 128GB |
| Storage | 1×M.2 SSD slot; 6×SATA3 ports |
| Storage Expansion | 2×PCIEX16, 1×PCIEX4, 2×PCI slots |

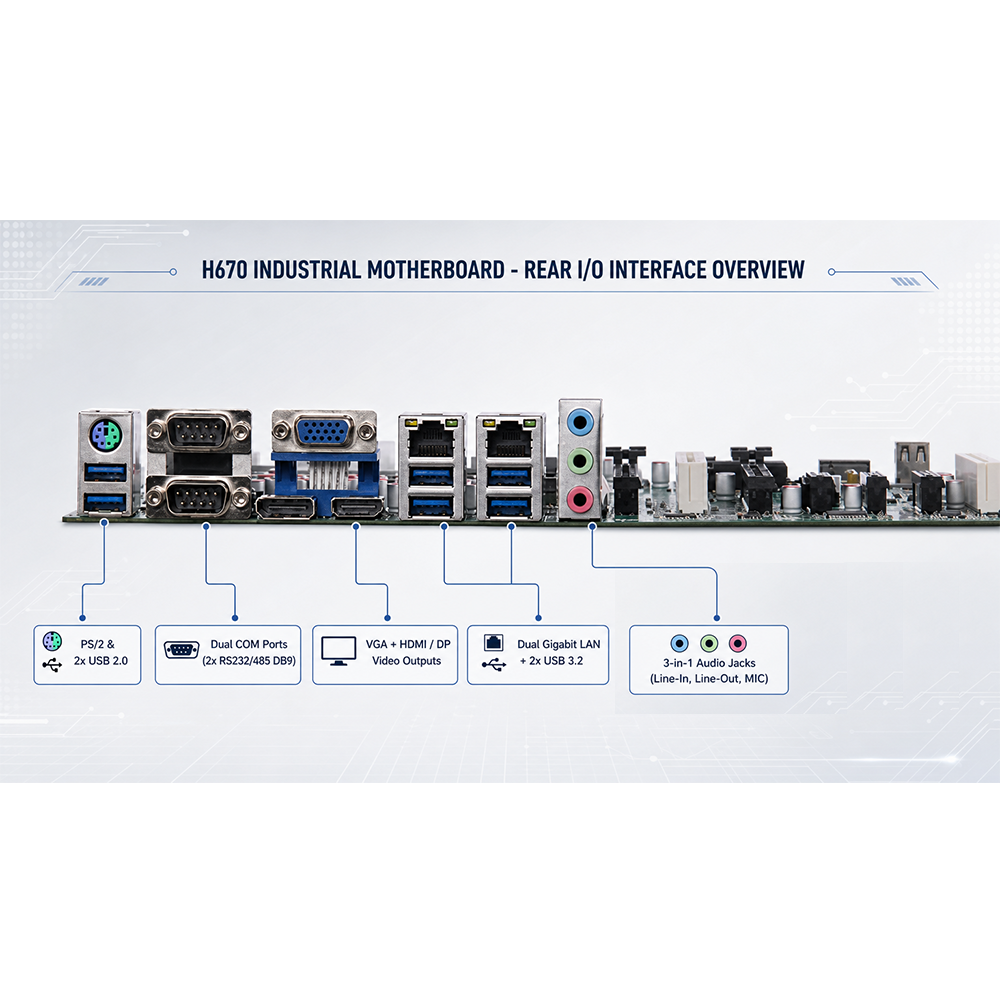

| Interface Type | Quantity | Specification |
|---|---|---|
| LAN | 2 | 2x Intel I210,I219 1000M |
| USB | 12 | 6*USB3.2 Gen2 [Max Support：10Gbps ] 6*USB2.0 |
| Display | 3 | HDMI, DP, VGA |
| COM | 2 | 2x RS232/485/422 |
| Operating Temperature | -20 to 60 ℃ |
| Power Input | 500W |
| Power Consumption | 65-219W |
| Protection | Transparent Case with shinning fans |
| Dimensions | 305 × 244 mm |
| Weight | 1.2KG |
| Mounting Method |
Embedded
|
