TX60 NUC Ultra
Model: TX60 NUC Ultra
Technical Features
-
CPU & Chipset

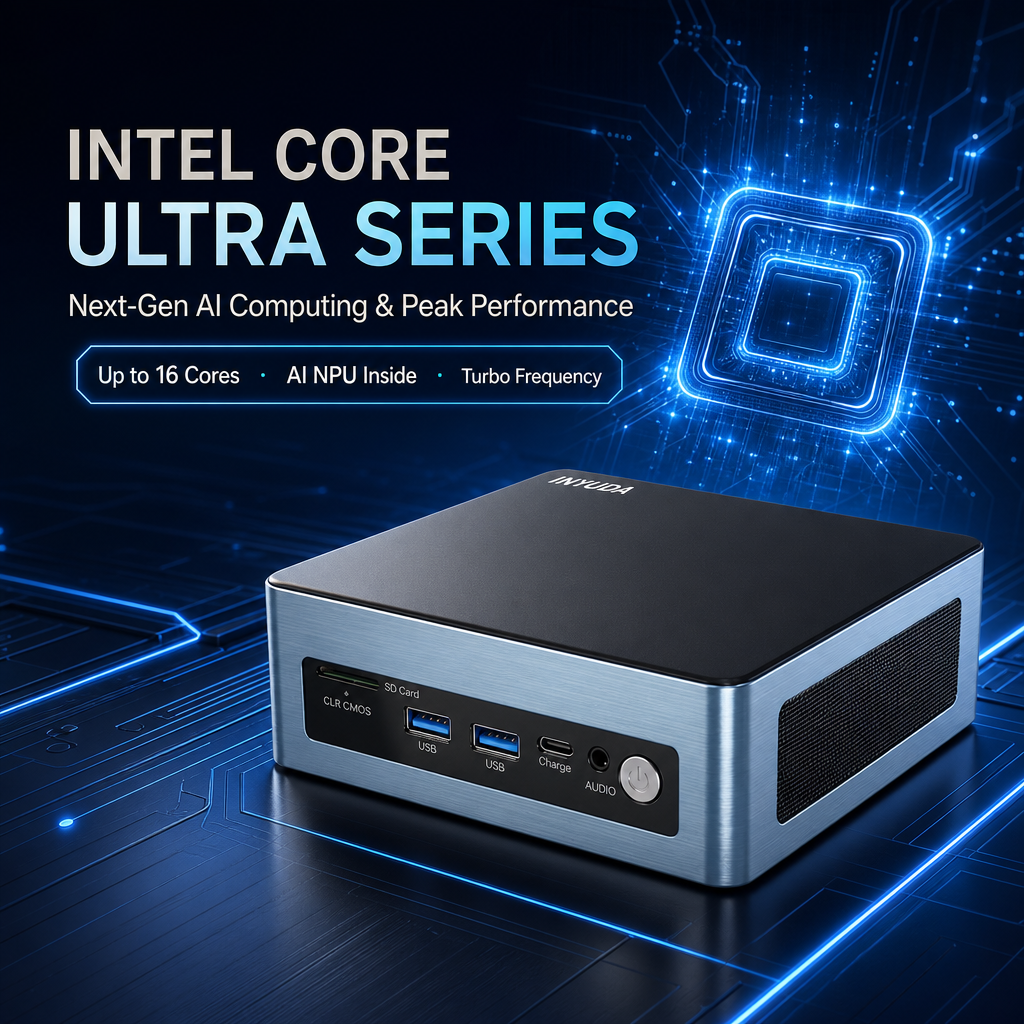

Supports Intel Core Ultra 100/200 series mobile processors; integrated Intel Arc graphics. Equipped with ITE8613E I/O chip and AMI BIOS, supports timed boot and PXE diskless boot.
-
Memory

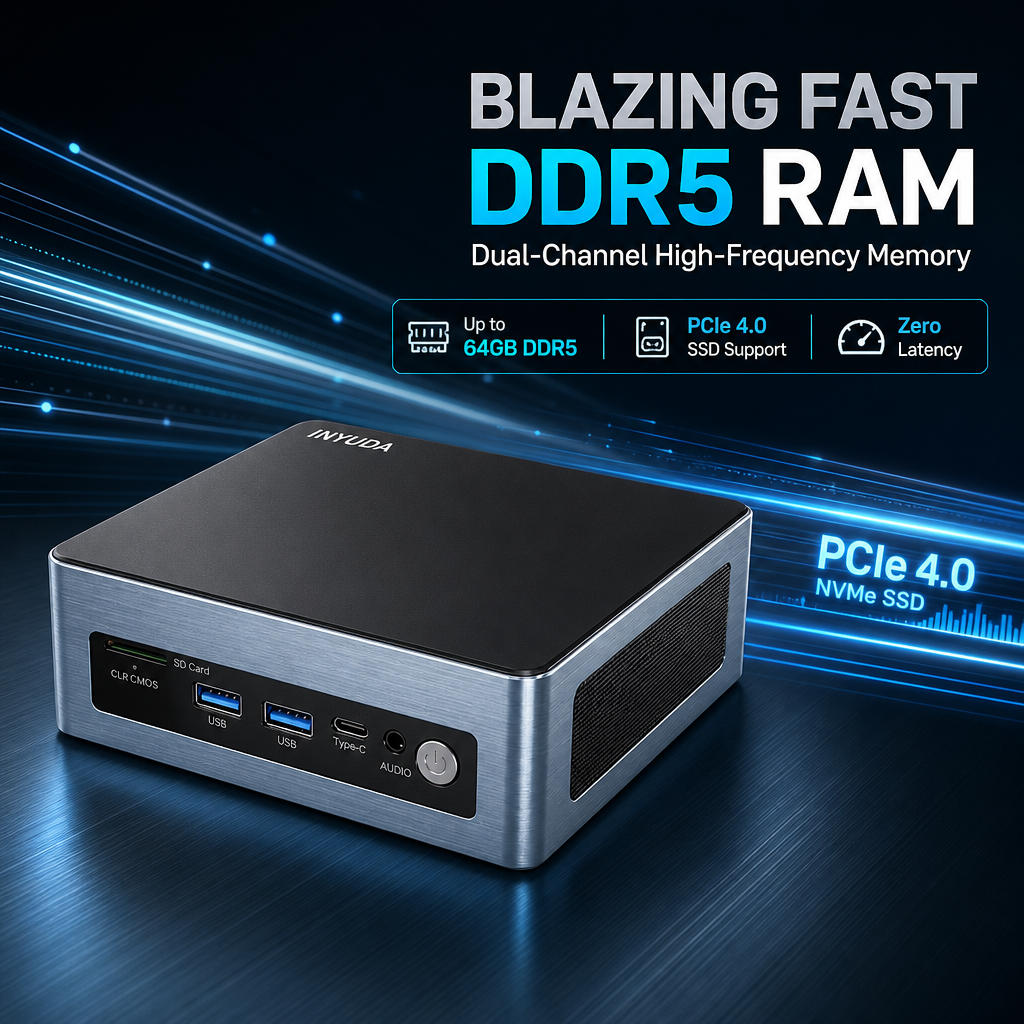

Dual DDR5 SO-DIMM slots, compatible with 4800/5600/6000/6400/6800/7200MHz, max 128GB.
-
Display Interfaces

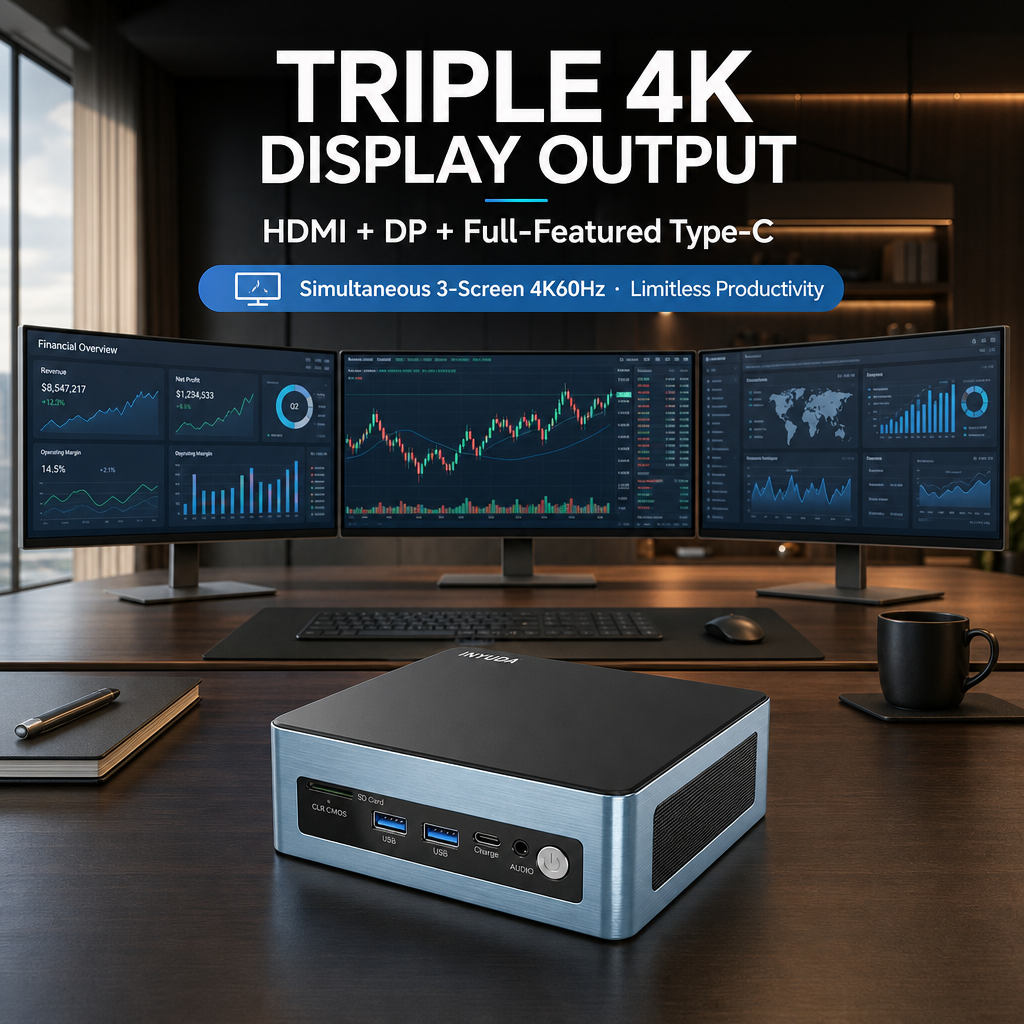

HDMI2.1, DP2.1 and Type-C DP; HDMI max 4096×2304@60Hz, DP max 7680×4320@60Hz.
-
Storage Interfaces
1×M.2 M Key 2280 slot (NVMe/SATA); FPC SATA port for 2.5-inch HDD/SSD; TF card slot.
-
Expansion & Audio
1×M.2 E Key 2230 slot for Wi-Fi/Bluetooth modules; Realtek ALC897 audio chip, 3.5mm MIC & line-out combo jack.
-
Network & USB
Realtek RTL8111H gigabit Ethernet; 4×USB3.2 Gen2 10Gbps ports; Type-C PD 20W charging output.
Full Product Specifications
| CPU Model | Ultra 5/ 7/ 9 100&200 Series Mobile Processor |
| Platform | Intel® |
| Cores / Threads | 14core/ 18threads |
| Graphics | Intel® Arc™ graphics |
| Memory | 2*SO-DIMM DDR5 4/8/16/32/64GB |
| Max Memory | 128GB |
| Storage | M.2 2280 SSD NVMe/ SATA Protocol |
| Storage Expansion | 1*SATA 2.5inch Hard Disk, I* M.2 E Key |
| Interface Type | Quantity | Specification |
|---|---|---|
| USB | 3 | 3.2 |
| LAN | 1 | Realtek® RLT8111H Gigabite Ethernet |
| Display | 2 | HD, DP |
| USB-C | 3 | Charge, Display, DC Power In |
| Operating Temperature | -20 to 60℃ |
| Power Input | DC 12-20V 65W |
| Power Consumption | 28-115W |
| Protection | Anti-vibration |
| Dimensions | 127*117*43 |
| Weight | 0.8KG |
| Mounting Method |
Wall Mount
VESA
|

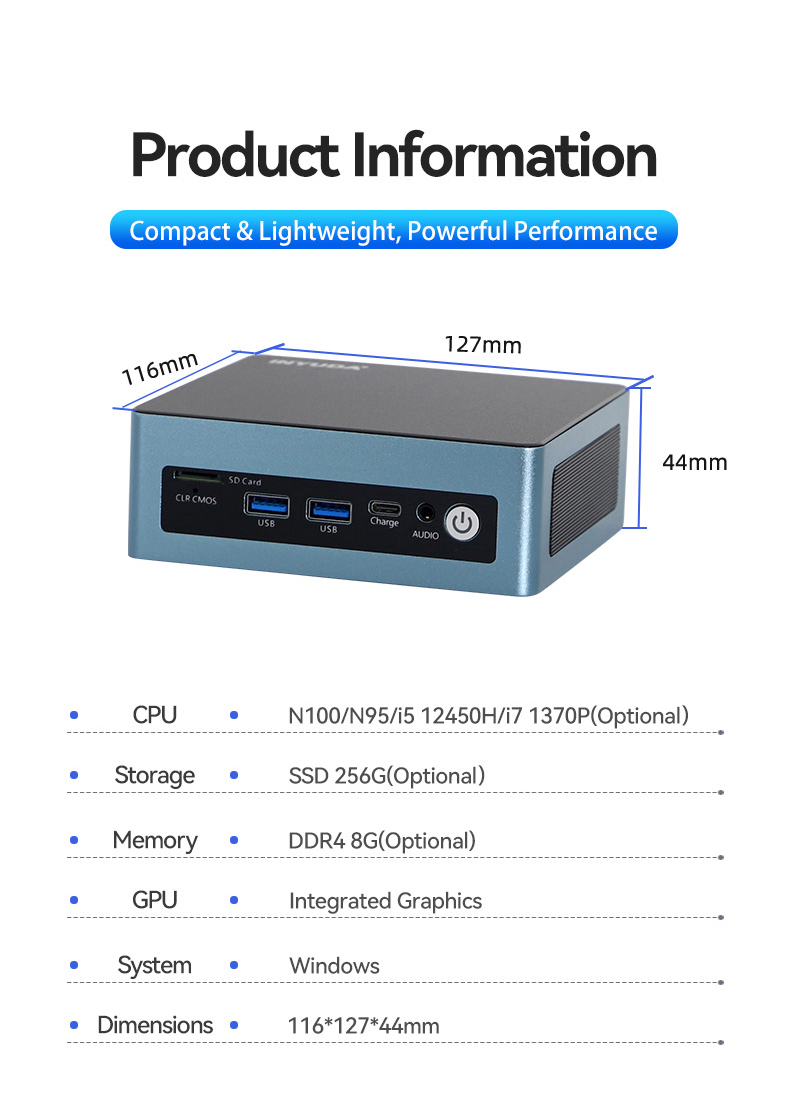

| Dimension Drawing | 详情-英文_08.jpg |
