Key Features
CPU
Intel N100/ N95/ N150 N Series
Memory
DDR4 8G/ 16GB
Storage
M.2 2280 SSD NVMe/ SATA Protocol
Operating Temp
-20 to 60℃
Mini NUC PC
Affordable Level
TX60 NUC N100
Model: TX60-NUC N100
Features
1. Ultra-Compact Form Factor
With an ultra-small size of only 127*116*45mm, this MiniPC delivers space-saving performance.
2. Powerful Processing Performance
■ Optional Intel® Celeron™ N95/ N100/ N150 N series processor paired with integrated Intel® UHD Graphics (up to 750 MHz).
3. High-Speed Memory & Storage Configuration
- Built-in one SODIMM DDR4 26666MHz high-speed RAM for seamless multitasking and fast application response
- M.2 2280 SSD slot supporting both PCIe Gen3X2 NVMe and SATA3 protocols.
4. Stable & High-Speed Network Connectivity
- Wired network: Built-in RJ45 gigabit Ethernet port, 1G Internet.
- Wireless network: M.2 E Key Slot, supporting WiFi6E + Bluetooth 5.3.
5. Rich Expandable Interfaces
- 3 x USB3.2 ports for high-speed data transmission and peripheral connection
- 1 x HDMI 2.0 and 1 x DP1.4 ports for dual 4K HD video output, supporting multi-screen display
- 3.5mm CTIA standard earphone jack for audio output
- TF card slot (max support 128GB) for convenient external storage expansion
- Type-C port for 12V/3A power input, ensuring stable and safe power supply
6. User-Friendly System & Design
- Pre-installed Windows 11 operating system with multi-language support, ready to use out of the box
- Built-in CR2032 RTC battery for accurate system time keeping
- Equipped with a cooling fan to ensure long-term stable operation under high load
- Intuitive LED indicators (blue for power, green/orange for LAN status) and physical power button for easy operation
MOQ: 200 units
Lead Time: 2-4 weeks
Technical Specifications
Full Product Specifications
| CPU Model | Intel N100/ N95/ N150 N Series |
| Platform | Intel |
| Cores / Threads | 4 Cores/ 4 Threads |
| Graphics | Intel® UHD Graphics |
| Memory | DDR4 8G/ 16GB |
| Max Memory | Up to 16GB |
| Storage | M.2 2280 SSD NVMe/ SATA Protocol |
| Storage Expansion | 1*M.2 E Key 2230 solt |
| Interface Type | Quantity | Specification |
|---|---|---|
| USB | 3 | 3.2 |
| Type C | 1 | Charge |
| Display | 3 | HD, DP, TYPE C |
| LAN | 1 | Realtek® RLT8111H 1G |
| Operating Temperature | -20 to 60℃ |
| Power Input | 20V 3.25A 65W |
| Power Consumption | 15-25W |
| Dimensions | 127*117*43MM |
| Weight | 0.8KG |
| Mounting Method |
Wall Mount
|

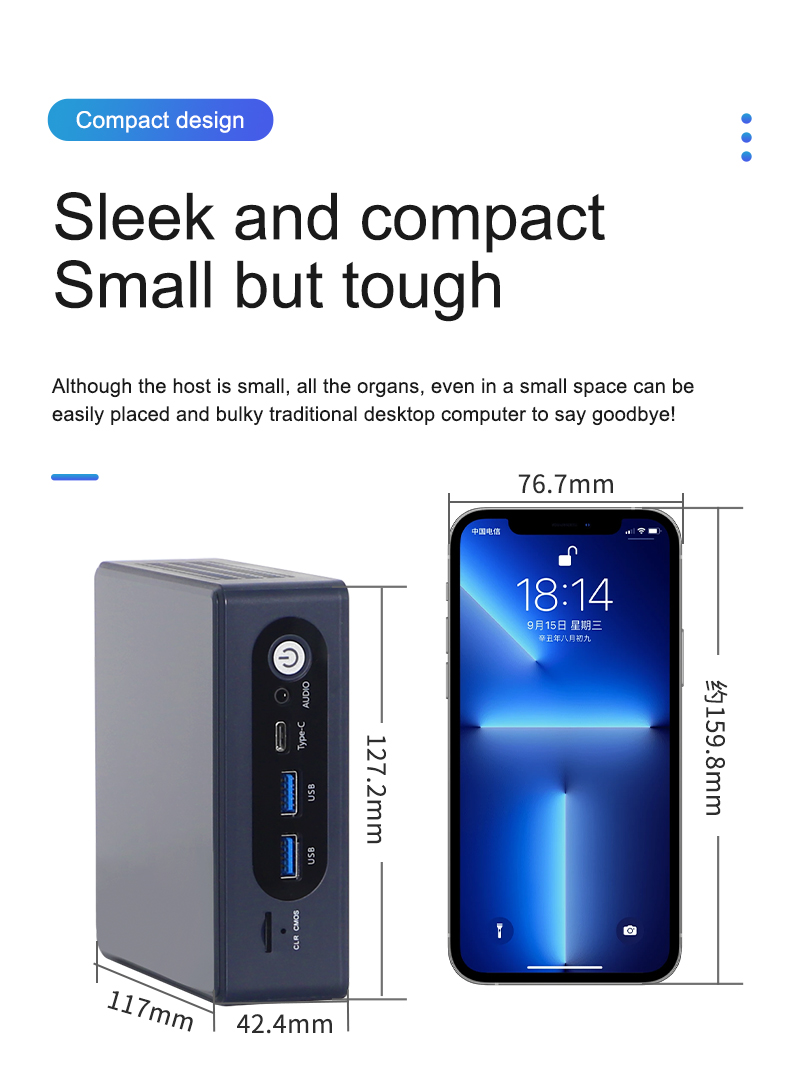

| Dimension Drawing | 详情_03.jpg |
