Key Features
CPU
Intel® 12th/13th Core™ I3/I5/I7/I9
Memory
2*DDR4 8G/ 16G/ 32G
Storage
M.2 M Key 2280 SSD NVMe/SATA Protocol
Operating Temp
-20 to 60 ℃

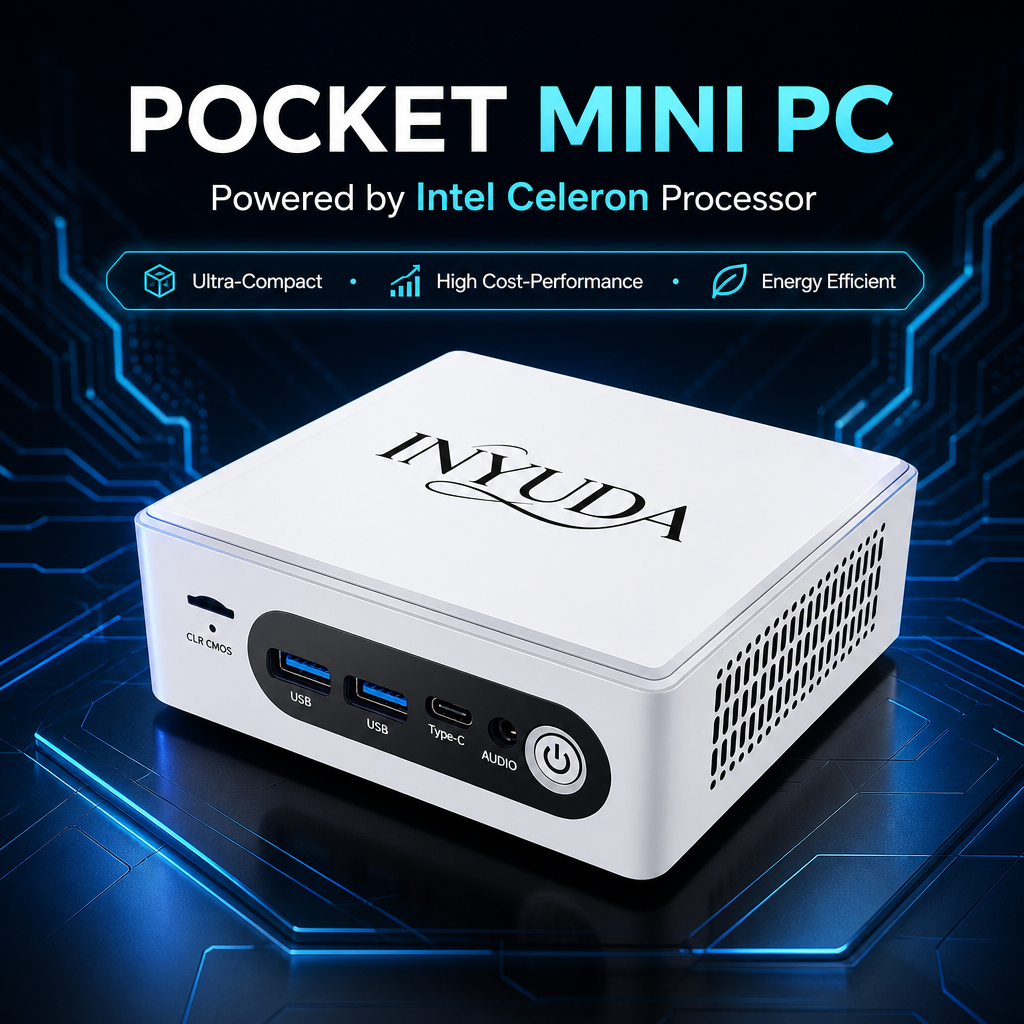

Mini NUC PC
Affordable Level

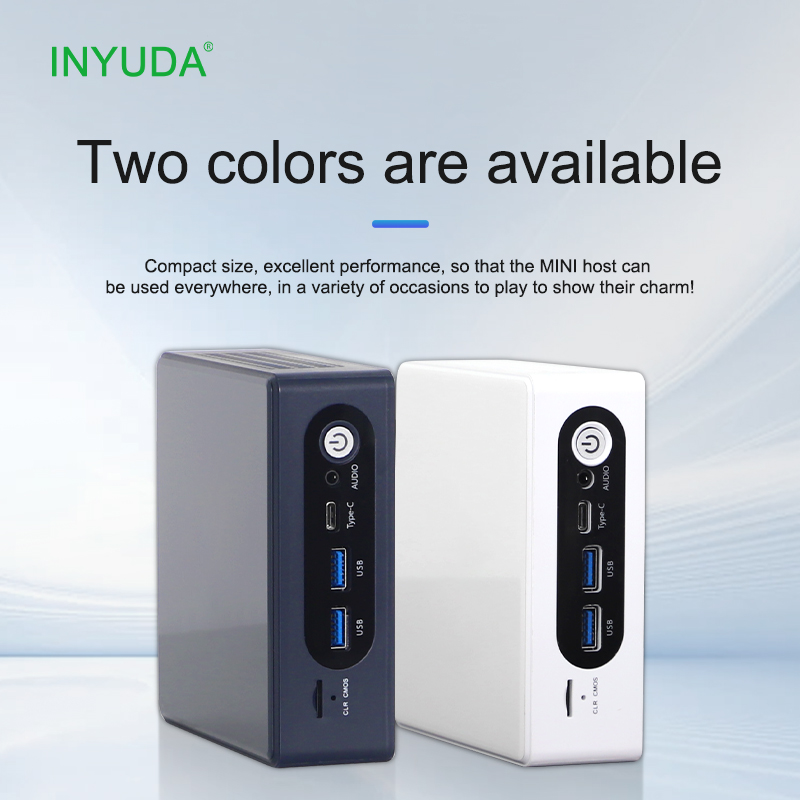

TX60 NUC M12U
Model: TX60-NUC M12U
CE
FCC
RoHS
Features
■Optional Intel® Core™ I3/I5/I7/I9 Alder Lake/Raptor Lake Mobile Processor
■1*HDMI2.1 Max 4096*2304@60HZ
■1*DP1.4a Max 7680*4320@60HZ
■DDR4 SO-DIMM *2，max support 64GB
■1*Realtek RLT8111H 10/ 100/ 1000M Ethernet
■Timed boot, PXE diskless boot

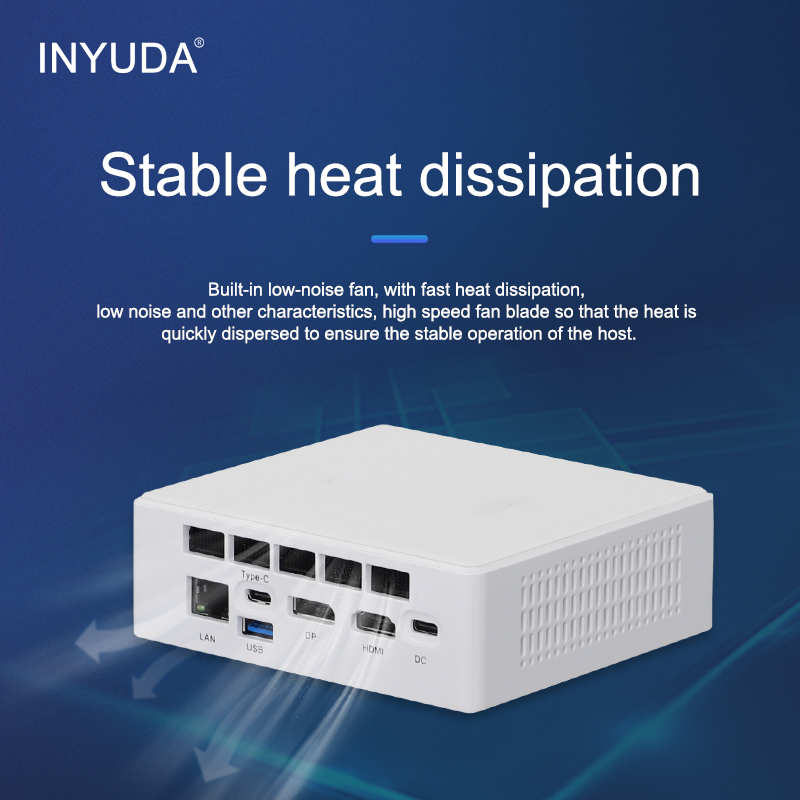

■Low power consumption and ultra quiet fanless design
MOQ: 200 units
Lead Time: 2-4 weeks
Technical Specifications
Full Product Specifications
| CPU Model | Intel® 12th/13th Core™ I3/I5/I7/I9 |
| Platform | Intel® |
| Cores / Threads | 6 Cores/ 8 Threads |
| Graphics | Intel® UHD Graphics for 12th Gen Intel® Processors |

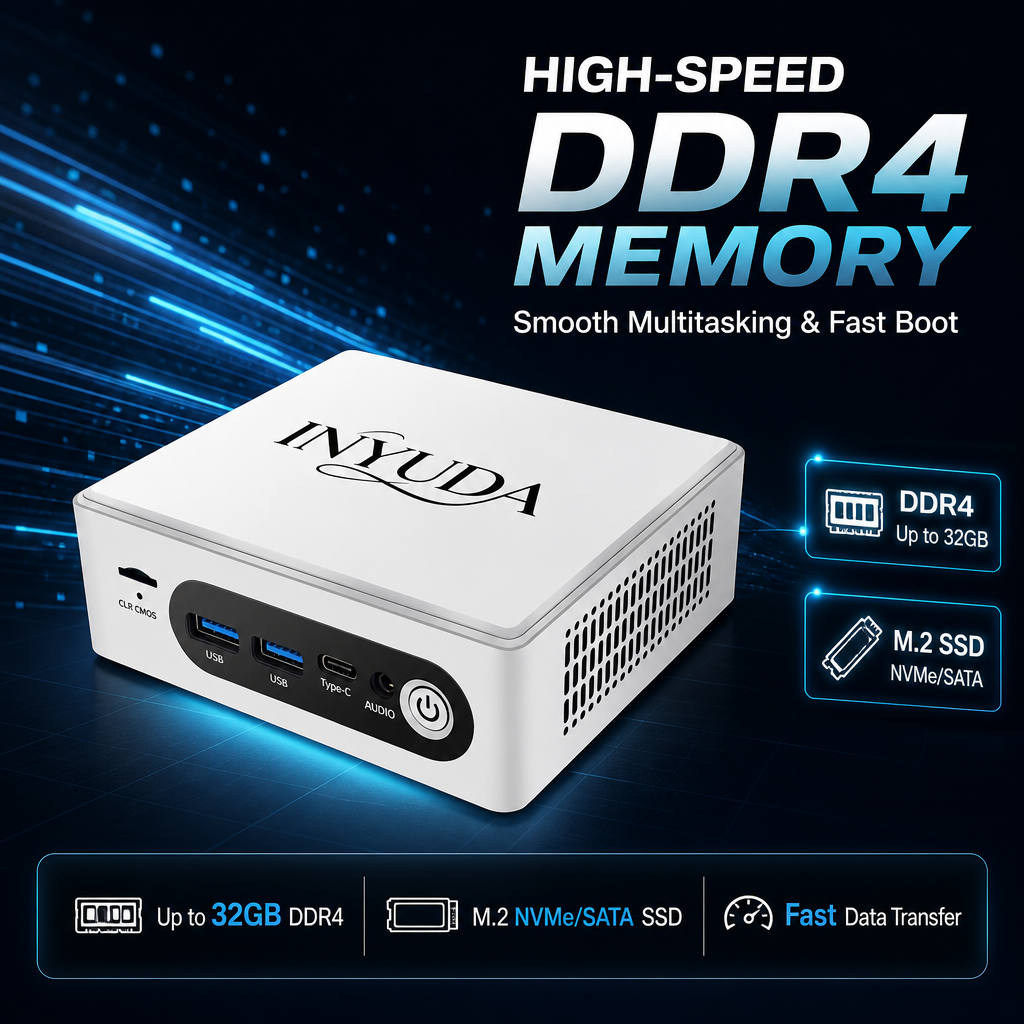

| Memory | 2*DDR4 8G/ 16G/ 32G |
| Max Memory | Up to 64GB |
| Storage | M.2 M Key 2280 SSD NVMe/SATA Protocol |
| Storage Expansion | M.2 E Key 2230 WIFI |

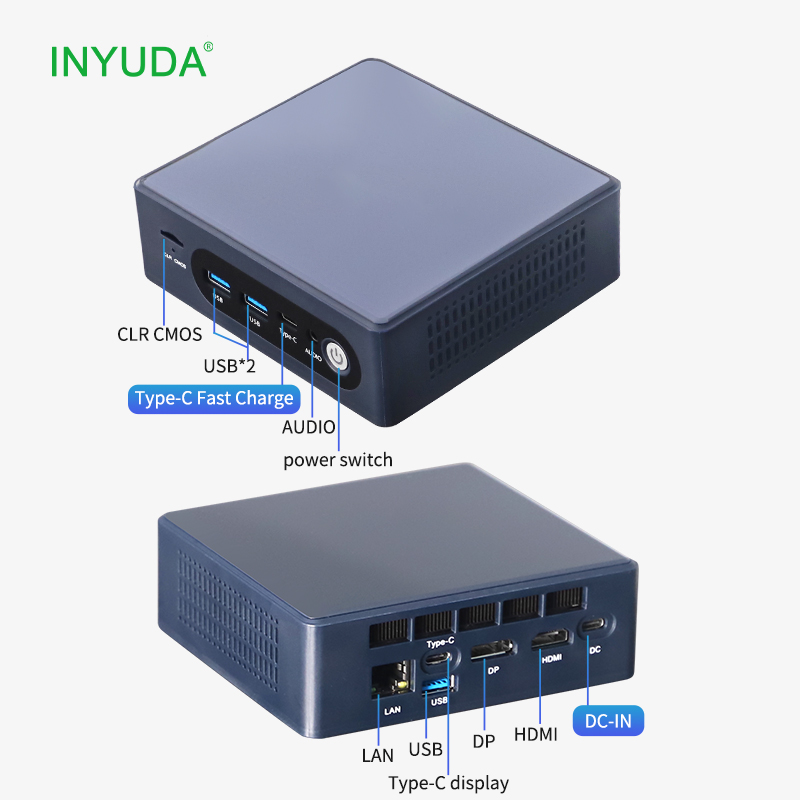

| Interface Type | Quantity | Specification |
|---|---|---|
| USB | 3 | 3.2 |
| LAN | 4 | Realtek RLT8111H 1G |
| Display | 3 | HD, DP, TYPE C |
| Operating Temperature | -20 to 60 ℃ |
| Power Input | 20V 3.25A 65W |
| Power Consumption | 15-55W |
| Dimensions | 127*117*43MM |
| Weight | 0.8KG |
| Mounting Method |
Wall Mount
|

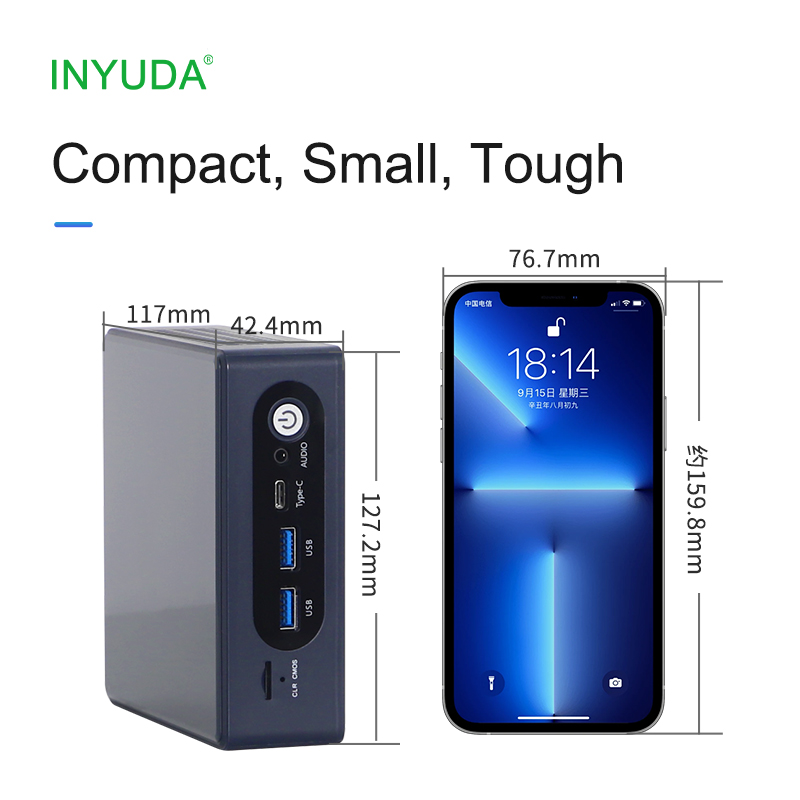

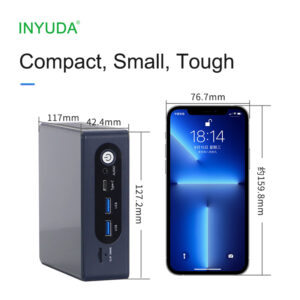

| Dimension Drawing | 03.jpg |
