Key Features
CPU
Support Intel® FCBGA1023 sockets 3th Generation Mobile Processor
Memory
DDR3 1600MHz
Storage
1*Mini SATA SSD+ 1*SATA 3.0 Interfaces
Operating Temp
-20 to 60 ℃
Industrial PC
Affordable Level
TX30 M34U
Model: TX30 M34U
CE
FCC
RoHS
Features
1. Compact X86 ITX Form Factor
2. Processing：FCBGA1023 Built-in Intel® Core™ Low chipset power consumption.
3. Display: Equipped with VGA, HDMI, LVDS and eDP interfaces, supports multi-screen output.
4. Memory: One DDR3L slots, maximum capacity up to 8GB.
5. Storage: Provides SATA III and M.2 (SATA) interfaces for storage expansion.

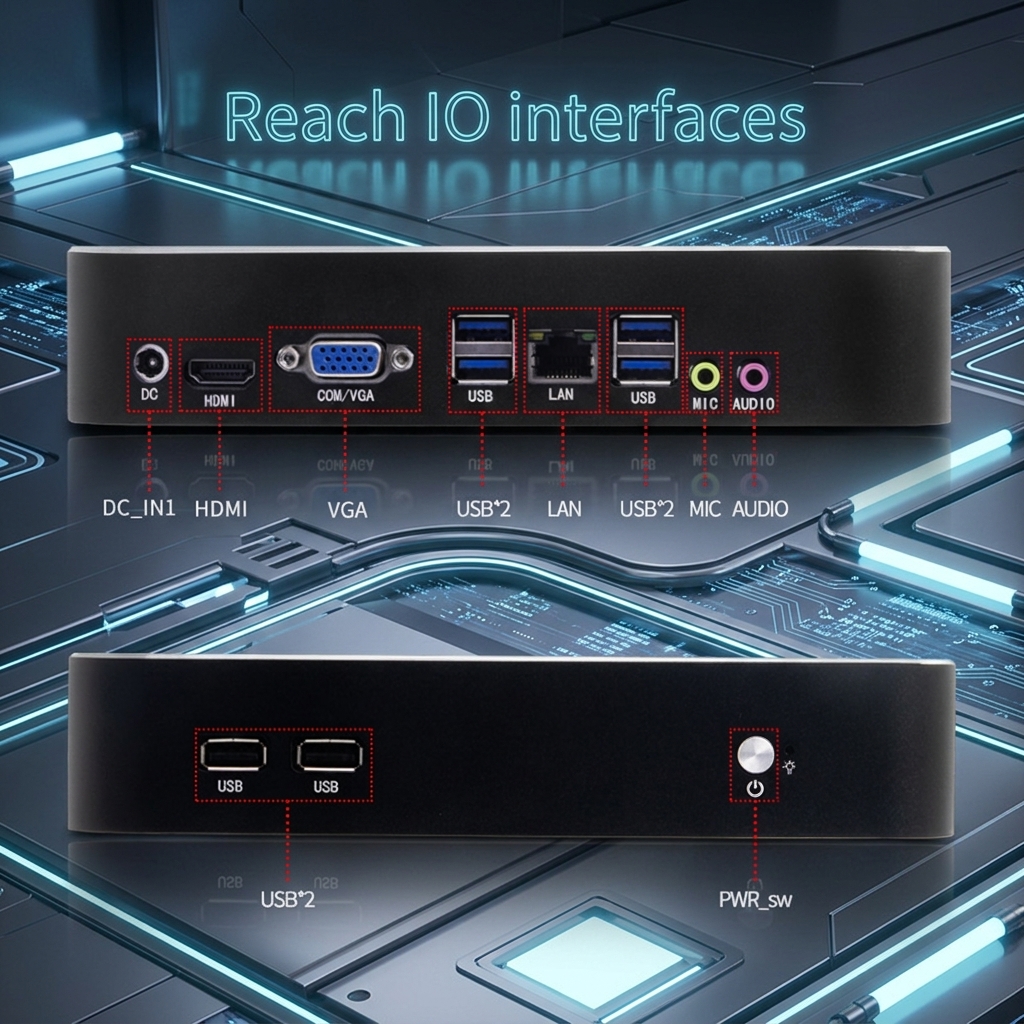

6. Rich Expandable Interfaces：2x USB 3.0 and 4xUSB 2.0 ports; Gigabit Ethernet is optional.
7. Reliability: Supports 7×24 continuous operation and remote management functions.
MOQ: 100 units
Technical Specifications
Full Product Specifications
| CPU Model | Support Intel® FCBGA1023 sockets 3th Generation Mobile Processor |
| Platform | Intel® |
| Cores / Threads | 2cores 4threads |
| Graphics | Intel® HD Graphics 4000 |
| Memory | DDR3 1600MHz |
| Max Memory | 8GB |
| Storage | 1*Mini SATA SSD+ 1*SATA 3.0 Interfaces |
| Storage Expansion | 1*Mini PCIE solt |
| Interface Type | Quantity | Specification |
|---|---|---|
| USB | 6 | USB3.0x2, USB2.0x4 |
| LAN | 1 | Gigabit Ethernet, 2LAN optional |
| Display | 2 | HDMI, VGA |
| Operating Temperature | -20 to 60 ℃ |
| Power Input | 12V 7A 82W |
| Power Consumption | 17W |
| Protection | Fanless |

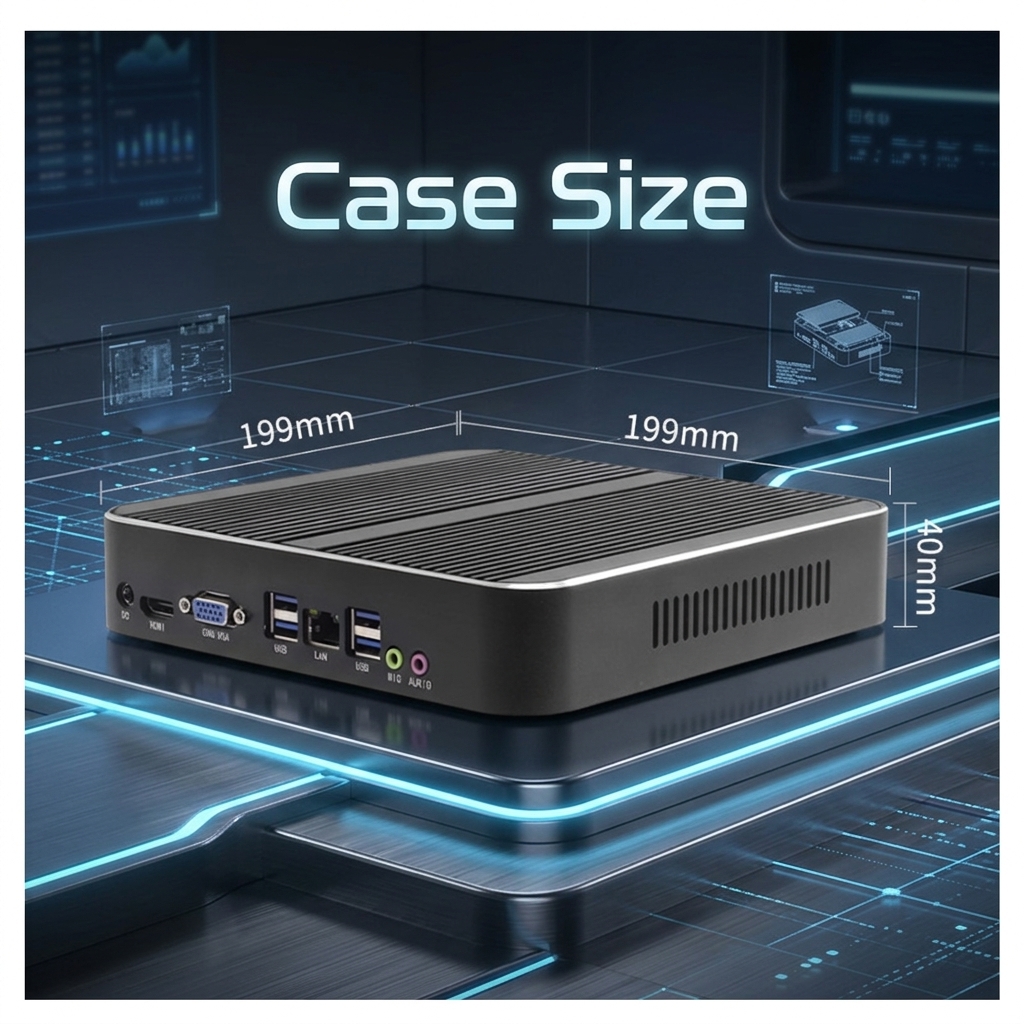

| Dimensions | 192*192*33MM |
| Weight | 1.5KG |
| Mounting Method |
VESA
|
