IPC M12U
Model: IPC M12U I3 I5 I7
Features
-
Processor & Graphics
Equipped with Intel 12th Gen i5-12450H (8 cores 12 threads, max 4.4GHz, 12MB cache). Integrated Intel UHD Graphics, max dynamic frequency 1.2GHz.
-
Memory & Storage
- Dual DDR4 SO-DIMM slots, maximum 64GB RAM
- 1×M.2 NVMe slot pre-installed with 512GB storage; optional 2.5-inch SATA SSD/HDD bay
-
Dual 2.5G Ethernet
Dual Intel I225V 2.5G RJ45 ports. Supports Wake on LAN, timed boot, PXE diskless boot.
-

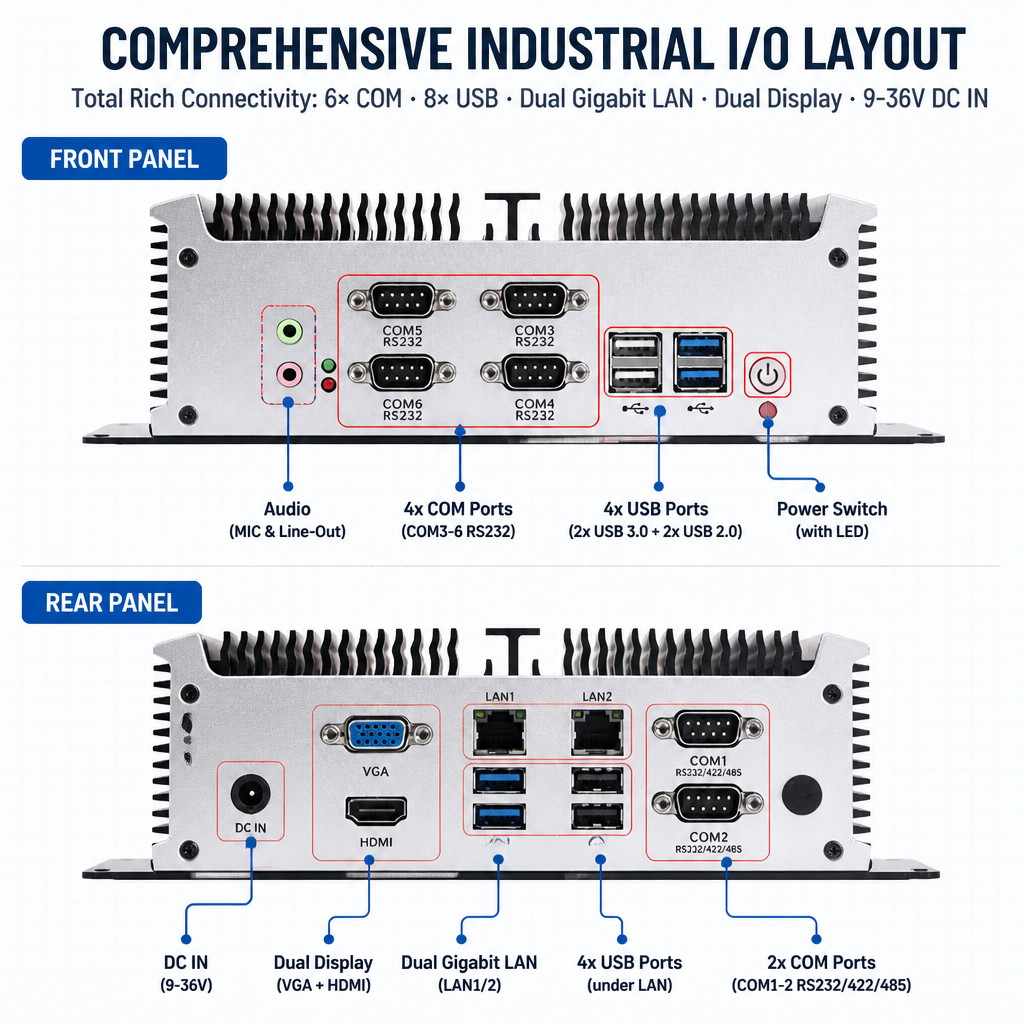

Rich Serial & I/O Interfaces
- 6×DB9 COM ports; COM1/COM2 configurable as RS232/422/485 via BIOS
- 4×USB3.0 + 4×USB2.0
- 1×HDMI1.4 (4096×2160@24Hz), 1×VGA (1920×1080@60Hz)
- MIC input, speaker output, power button, DC 12V power jack
- 8 GPIO pins (4 input + 4 output)
-
Dual Mini PCIE Expansion Slots
One slot for Wi-Fi/Bluetooth module; another for 3G/4G cellular modules.
-

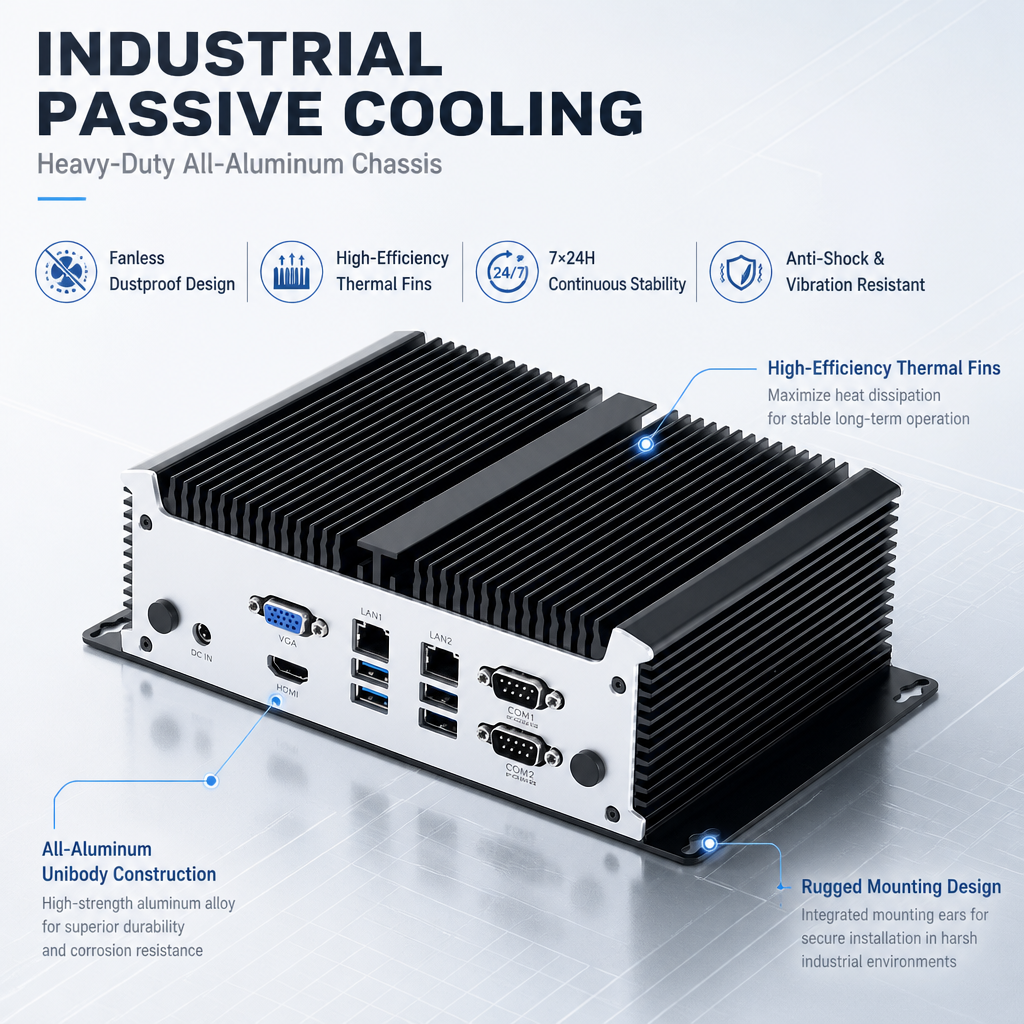

Cooling & Structure
Fanless aluminum enclosure, low noise and low power consumption.
Size: 240mm×150mm×69mm, weight 2.0kg. Supports desktop and wall mounting.
-
Wide Operating Environment
Operating temperature: -20℃ ~ +65℃; storage temperature: -30℃ ~ +70℃.
Humidity: 5%–95% non-condensing relative humidity.
-
Power Supply & System
DC 12V/6A power input. Preloaded Windows 10 IoT ENT LTSC.
Supports timed automatic startup.
Full Product Specifications
| CPU Model | Support Intel® Core™ I3/I5/I7/I9 Alder Lake/Raptor Lake Mobile Processor |
| Platform | Intel® |
| Cores / Threads | 6cores 12threads |
| Graphics | Intel® UHD Graphics |
| Memory | 2*DDR4 2666/ 3200MHz |
| Max Memory | 64GB |
| Storage | 2*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*SATA 3.0 Interfaces |
| Storage Expansion | 1*M.2 E Key 2230 solt |
| Interface Type | Quantity | Specification |
|---|---|---|
| USB | 6 | 4*USB3.0, 2*USB2.0 |
| LAN | 1 | Realtek gigabit Ethernet, optional 2*LAN |
| Display Port | 3 | HDMI, DP, TypeC |
| COM | 1 | optional COM for Asia 42MM Case |
| Operating Temperature | -20 to 60 ℃ |
| Power Input | 12V 7A 82W |
| Power Consumption | 45-115W |
| Protection | Air discharge ± 8 KV Class C ± 6 KV of grade B Contact discharge is ± 6 KV Class C ± 3 KV Grade B * Test of the whole machine under good grounding |
| Dimensions | 180*119*30MM |
| Weight | 0.9KG |
| Mounting Method |
Wall Mount
VESA
Embedded
|

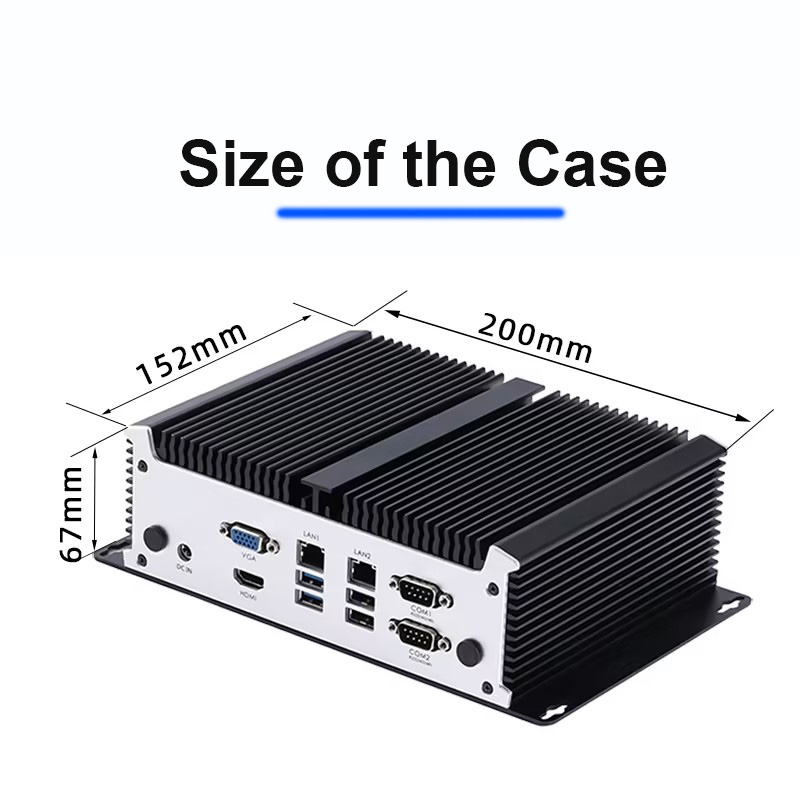

| Dimension Drawing | Size.jpg |
