IPC J6412
Model: IPC J6412
- CPU & Graphics
Supports Intel Celeron/Pentium J/N series processors, integrated Intel UHD Graphics.
2. Memory
2 SO-DIMM DDR4 slots (2133/2400/2666/3200MHz), maximum capacity 32GB.
3. Multi-display Interfaces
1×HDMI (4096×2160@60Hz), 1×LVDS (default 1920×1080, resolution adjustable via jumpers), 1×eDP (4096×2160@60Hz).
4. Storage
1×M.2 M Key 2280 slot with auto NVMe/SATA protocol switching; 1×SATA3.0 for 2.5-inch SSD/HDD.
5. Expansion Slots
1×M.2 E Key 2230 for Wi-Fi & Bluetooth; 1×Mini PCIe for 4G module with SIM card, optional Mini PCIe Wi-Fi.
6. Network
Dual Intel WGI210AT gigabit Ethernet controllers.
7. USB Ports
4 external USB3.0 ports; 4 internal USB2.0 pin headers.
8. Serial & Special I/O
2 external COM ports (switchable RS232/422/485 via jumpers); 4 internal COM pin headers; reserved LPT printer header.
Full Product Specifications
| CPU Model | Support Intel® Celeron™ Elkhart Lake Mobile Processor 10nm |
| Platform | Intel® |
| Cores / Threads | 4cores 4threads |
| Graphics | Intel® UHD Graphics |
| Memory | 2*DDR4 2666/ 3200MHz |
| Max Memory | 64GB |
| Storage | 1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch）+ 1*SATA 3.0 Interfaces |
| Storage Expansion | 1*M.2 E Key 2230 solt |
| Interface Type | Quantity | Specification |
|---|---|---|
| USB | 6 | 4*USB3.0, 2*USB2.0 |
| LAN | 1 | Realtek gigabit Ethernet, optional 2*LAN |
| Display Port | 3 | HDMI, DP, TypeC |
| COM | 1 | optional COM for Asia 42MM Case |
| Operating Temperature | -20 to 60 ℃ |
| Power Input | 12V 7A 82W |
| Power Consumption | 45-115W |
| Protection | Air discharge ± 8 KV Class C ± 6 KV of grade B Contact discharge is ± 6 KV Class C ± 3 KV Grade B * Test of the whole machine under good grounding |
| Dimensions | 180*119*30MM |
| Weight | 0.9KG |

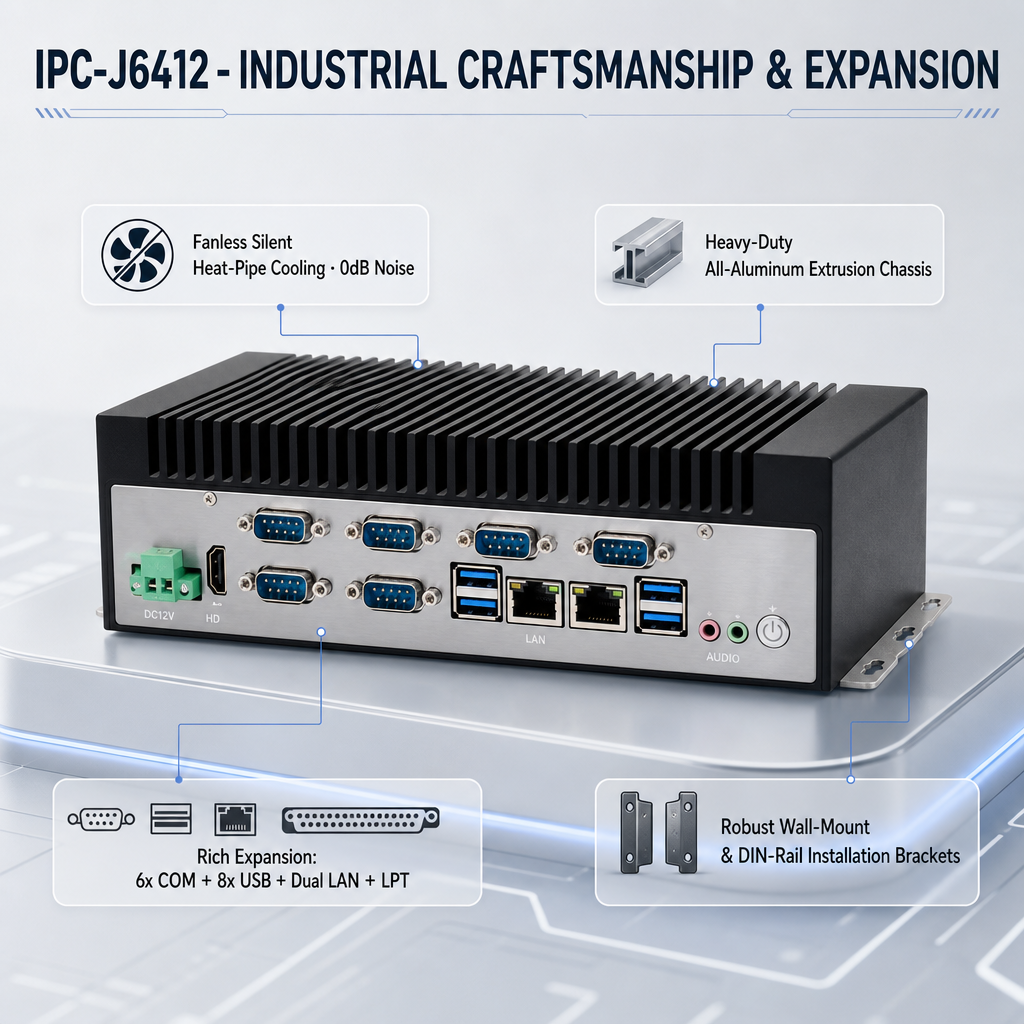

| Mounting Method |
Wall Mount
VESA
Embedded
|
