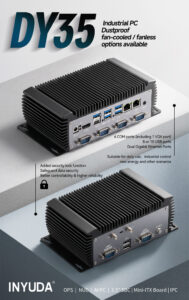

A Comprehensive Overview of INYUDA DY35 Series Motherboard in Industrial Mini PC
23/07/2026
dualcoretech01@gmail.com
The 3.5-inch form factor remains the cornerstone of embedded and industrial computing, offering an optimal balance between compact dimensions and rich expansion capabilities. The DY35 series from our lineup exemplifies this standard, providing three distinct platform variants to address the evolving and diverse demands of modern industrial applications, from legacy system upgrades to cutting-edge edge computing.
1. DY35-M678U: The Workhorse for Legacy and Cost-Sensitive Applications
Built on the FCBGA1356 socket, the DY35-M678U supports Intel® 6th/7th/8th Gen Core processors, making it an ideal choice for system integrators seeking a stable, proven platform for retrofitting existing equipment or deploying cost-effective solutions. The motherboard features dual DDR3 SO-DIMM slots (max 16GB), a legacy mSATA interface, and an M.2 E-Key 2230 slot for wireless connectivity. Industrial-grade features include six COM ports (with two supporting RS232/485 auto-switching), five USB 3.0 and five USB 2.0 ports, and dual Realtek RTL8111H Gigabit Ethernet controllers. Display flexibility is ensured via HDMI and pin headers for VGA, LVDS, and eDP, catering to various display setups in factory automation and kiosks.
2. DY35-M1213U: The Mid-Range Powerhouse for Modern Workloads
Designed for higher performance requirements, the DY35-M1213U leverages the FCBGA1744 socket to support Intel® 12th and 13th Gen U/P/H series processors. This platform represents a significant leap forward, featuring dual DDR5 SO-DIMM slots (up to 96GB max) and a high-speed M.2 M-Key 2280 slot supporting NVMe/SATA protocols. Network capabilities are upgraded with dual Intel I226-V 2.5G Ethernet ports, ensuring reliable and high-throughput connectivity for data-intensive tasks. It retains the robust industrial I/O of the M678U, including six COM ports, six USB 3.0 ports, and support for multi-display configurations, making it perfect for digital signage, edge servers, and advanced human-machine interfaces (HMI).
3. DY35-ALDN Series: The Energy-Efficient Edge Solution
Targeting low-power edge applications, the DY35-ALDN series is powered by Intel® N-series processors (N95/N100/N150/N305), delivering exceptional performance-per-watt. The platform supports a single DDR5 SO-DIMM slot (up to 16GB) and an M.2 NVMe slot. It comes standard with dual Intel I226-V 2.5G Ethernet ports and offers a full suite of industrial connectivity, including six COM ports (with configurable RS232/422/485 support) and ten USB ports. With its low TDP and fan-cooled design, the ALDN series is well-suited for IoT gateways, smart retail devices, and energy-conscious industrial control systems.
Unified Industrial Design Philosophy
Across all variants, the DY35 series maintains a consistent industrial design ethos. Common features include:
- Robust I/O: Abundant COM, USB, and display ports to connect with legacy and modern peripherals.
- Flexible Networking: Dual LAN configurations (1G or 2.5G) for network redundancy and high-speed data transfer.
- Expansion Ready: PCIe x4 and M.2 slots for custom add-on cards, wireless modules, and high-speed storage.
- Wide-Range Power: DC 12V input with optional 11V-27V support for unstable power environments.
- Thermal Stability: Built-in CPU coolers with 4-pin fan headers and an operating temperature range of 0°C to 60°C.
The DY35 series thus provides a scalable, future-proof platform for industrial computing, ensuring that integrators can select the precise level of performance, power efficiency, and feature set required for their specific application.
